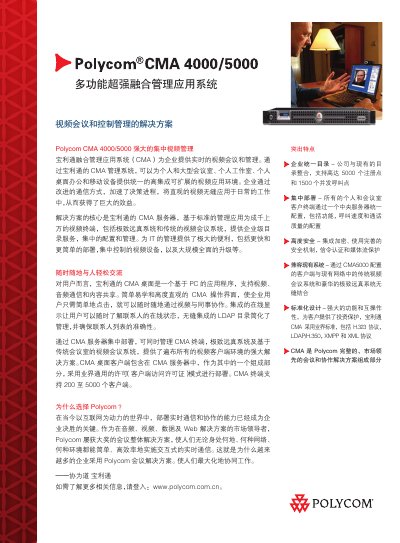

Polycom CMA 4000/5000 Application System Manual
The CMA 4000/5000 is a centralized video‑management solution that supports 200 to 5,000 client endpoints across personal desktops, meeting rooms, and mobile devices. It offers integrated directory services, encryption, and compatibility with existing H.323 video systems.
The document details software requirements (Windows XP/ Vista, DirectX, Flash), hardware specifications (1U rack, dual 750 W hot‑swap power supplies, Intel 5140 CPUs, 4 GB RAM), environmental limits, and regulatory compliance for global deployments. This manual is written in Chinese.
Polycom CMA 4000 specifications
| Max Registered Clients | 400 |
|---|---|
| Processor | 1 x Intel Xeron E5506, 2.13 Ghz Turbo Hyperthreading or higher |
| Hard Drive Configuration | 1 x 72GB, 15000 RPM, RAID 1 |
| Power Supply | Single or redundant standard 750W, hot-pluggable |
| Supported Protocols | H.323, LDAP/H.350, XMPP, HTTPS/XML |
| Operating Temperature (Run) | 10°C to 35°C |
Source: Polycom CMA 4000 Unified Management Application System Product Brochure
All Polycom CMA 4000 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum number of registered clients supported by CMA?
The system can support up to 400 registered clients, including Polycom CMA Desktop and remote presence systems.
From: Polycom CMA 4000 Unified Management Application System Product Brochure
What are the supported network protocols for the CMA system?
The system supports H.323, LDAP/H.350, XMPP, and HTTPS/XML protocols.
From: Polycom CMA 4000 Unified Management Application System Product Brochure
How many client terminals can the CMA system support?
The CMA system can manage between 200 and 5,000 client terminals.
What are the hardware dimensions and weight of the CMA 4000/5000 unit?
The unit measures 74.4 cm deep, 44.43 cm wide, and 8.64 cm high, and weighs up to 23 kg.
How many users can the Polycom CMA 4000 support?
It can support between 100 and 400 licensed users, depending on the license package selected.
What are the hardware dimensions of the CMA 4000?
The unit measures 77.2 cm deep, 42.39 cm wide and 4.26 cm high, and weighs about 15.87 kg.
