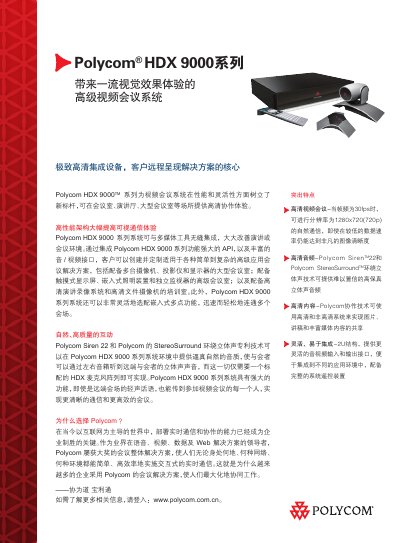

Polycom HDX 9000 Video Conferencing System Manual
This manual describes the Polycom HDX 9000 series video‑conferencing system, highlighting its high‑definition video, natural‑sound audio, and flexible integration options for meeting rooms, lecture halls, and training facilities. It outlines the system’s architecture, API capabilities, and optional features such as embedded multipoint and advanced camera setups.
The document also lists detailed technical specifications, including supported video and audio codecs, network interfaces, power requirements, environmental limits, and physical dimensions, as well as guidance for installation, configuration, and maintenance. This manual is written in Chinese.
Polycom HDX 9000 specifications
| Video input resolution | SXGA (1280 × 1024) |
|---|---|
| Audio bandwidth (Siren 22) | 22 kHz, G.719 codec |
| Typical power consumption | 189 VA @115 V @60 Hz |
| Operating temperature range | 0 °C – 40 °C |
All Polycom HDX 9000 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What video protocols does the HDX 9000 support?
It supports H.261, H.263++, H.264, People+Content/H.239, and related error‑concealment protocols.
Which audio standards are available on the system?
The system includes Polycom StereoSurround, Polycom Siren 22 (22 kHz, G.719), Polycom Siren 14 (14 kHz, G.722.1), G.722, G.722.1, G.711, G.728, and G.729A.
What video resolutions does the HDX 9000 support?
It supports up to 1080p at 30 fps and 720p at 60 fps, with lower‑resolution options such as 4SIF and CIF.
Which audio technologies are included in the system?
The system includes Polycom Siren 22 and StereoSurround technologies for high‑fidelity stereo sound.
