Key facts
- Brand
- Panasonic
- Model
- NI-L88R
- Category
- Other
- Industry
- Appliances
- Documents
- 2
- Languages
- ZH
- Last added
- 2012-03-12
Start here

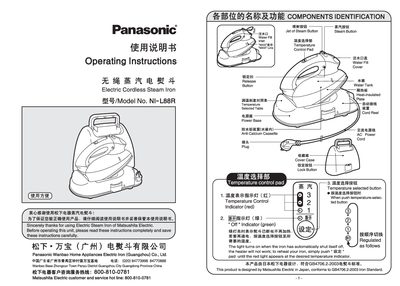

Panasonic NI-L88R Cordless Steam Iron User Manual
User Manual 6 pages · 3.7 MB · ZH
This manual provides safety notices, product specifications, and step‑by‑step operating instructions for the Panasonic NI‑L88R cordless steam iron. It explains how to fill the water tank, select temperature settings, use steam and jet‑steam functions, and safely store the iron after use.
Additional sections cover maintenance, troubleshooting, and warranty information, including how to retract the power cord, clean the soleplate, and what to do if the iron stops producing steam or shows error indicators. This manual is written in Chinese.
Panasonic NI-L88R specifications
| Rated voltage | 220V~50Hz |
|---|---|
| Power | 1300W |
| Plug type | single‑phase three‑pole plug (1.6 m) |
| Thermostat temperature range | 1‑3 (30‑200 °C) |
| Dimensions (L × W × H) | 26 cm × 17 cm × 21 cm |
| Weight | ≈1.9 kg |
| Water reservoir capacity | ≈80 ml |
All Panasonic NI-L88R documents by type
User Manual 2
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
