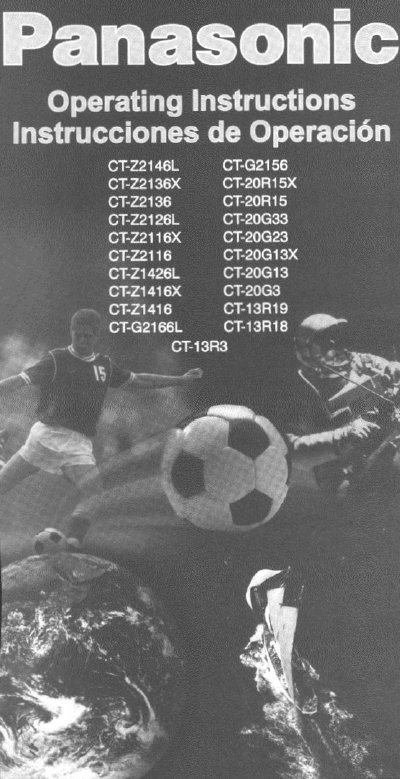

Panasonic CT-Z2146L/CT0Z2136X/CT-Z2136/CT-Z2126L/CT-Z2116X/CT-Z2116/CT-Z1426L/CT-Z1416X/CT-Z1416/CT-G2166L/CT-G2156/CT-20R15X/CT-20R15/CT-20G33/CT-20G23/CT-20G13X/CT-20G13/CT-20G3/CT-13R19/CT-13R18/CT

Brand: Panasonic
Category: Television
Document type: User Manual
Language: English
Pages: 11
File format: PDF
File size: 808 KB
Published: 06 August, 2012
Updated: 06 August, 2012
Models: CT-13R18C, CT-13R19C
MD5 checksum: CCDC444E27233447C611ACA4A9CB618D
PDF: Panasonic CT-Z2146L/CT0Z2136X/CT-Z2136/CT-Z2126L/CT-Z2116X/CT-Z2116/CT-Z1426L/CT-Z1416X/CT-Z1416/CT-G2166L/CT-G2156/CT-20R15X/CT-20R15/CT-20G33/CT-20G23/CT-20G13X/CT-20G13/CT-20G3/CT-13R19/CT-13R18/CT PDF

About this manual

This manual provides operating instructions for a variety of Panasonic TV monitor/receiver models. It details care and cleaning procedures, installation requirements regarding location and power supply, and connection methods for cables and antennas.

The guide explains how to connect optional equipment such as VCRs and audio amplifiers, adjust audio settings between the TV speakers and external amps, and navigate the main menu using the remote control.

What's inside

Care and Cleaning
Specifications
Installation Location
AC Power Supply Cord
Cable/Antenna Connection
Optional Equipment Connections
Audio Adjustments
Main Menu Navigation

Specifications

Power Source (CT-Z1416)	120Vca; 60Hz
Power Source (CT-20R15)	127Vca; 60Hz
Power Source (CT-Z2146L)	110Vca-220Vca; 50/60Hz

Frequently asked questions

What type of cable is recommended for best results?

Shielded audio and video cables should be used, specifically 75-ohm coaxial shielded cables.

How do I adjust audio between the TV speakers and an external amplifier?

Press the TV SPEAKERS ON button, set both volumes to desired levels, then press TV SPEAKERS OFF.

Download PDF (808 KB)
