This is an instruction manual for an LCD monitor, which introduces the use method, precautions and other information of the monitor

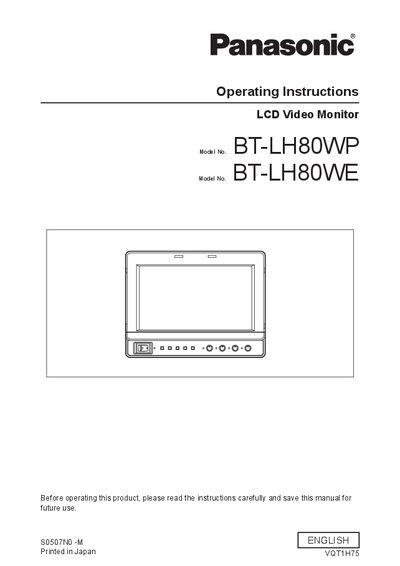

The Panasonic BT-LH80WP and BT-LH80WE are thin, lightweight 7.9‑inch LCD video monitors designed for broadcasting and business camera viewfinder use. The manual provides safety warnings, handling precautions, and detailed descriptions of the front and rear panels, control knobs, and menu functions.
Power can be supplied by an Anton/Bauer or V‑mount battery pack, an external 12 V DC source, or a rechargeable battery. The guide explains how to connect and operate the various input terminals (SDI, VIDEO/Y, PBPR, VF, GPI, RS‑232C) and how to use the on‑screen menu, remote control functions, and maintenance procedures.
| Display size | 7.9‑inch V (effective display area) |
|---|---|
| Depth | 64.7 mm (2‑9/16 in) |
| Weight | 1.5 kg (3.3 lb) |
| Operating temperature range | 5 °C to 40 °C (41 °F to 104 °F) |
The monitor can be powered by an Anton/Bauer type battery pack, a V‑mount type battery pack, or an external 12 V DC power supply.
The unit should be operated in an environment where the temperature is between 5 °C and 40 °C (41 °F to 104 °F).
