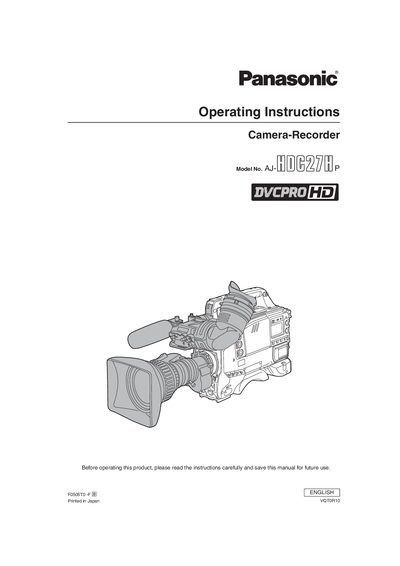

This document is the operating instructions for AJ- P Camera-Recorder. It introduces the features and characteristics of this product.
This manual provides comprehensive guidance for the AJ-HDC27H camera‑recorder, including safety warnings, power‑supply options, and accessory mounting. It details the features of both the camera unit and the integrated VTR, such as high sensitivity, variable frame rates, and film‑tone gamma curves.
The document walks the user through menu navigation, lens and viewfinder adjustments, audio input setup, battery and AC power usage, as well as recording, playback, and maintenance procedures like head cleaning and error code handling.
| Sensitivity | 2000 lx (F11) |
|---|---|
| Frame rate range | 4 fps to 60 fps |
| Signal‑to‑noise ratio | 54 dB (standard) |
| ADC resolution | 12‑bit |
| Recording rate | 100 Mbps |
Connect the AC adapter (model AJ‑B75) to the DC IN (XLR, 4‑pin) socket on the rear of the unit.
