Start here

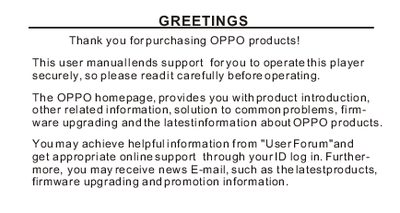

OPPO MP3 Player User Manual
This manual introduces the OPPO MP3 player, covering safety precautions such as temperature limits, handling warnings, and traffic safety advice. It also explains how to operate the device, including button functions, power on/off, playback, tuning, recording, and volume control.
Additional sections give battery usage guidelines, detailed button and jack illustrations, and a specification table that lists playback time, dimensions, audio performance, frequency ranges, and supported file formats.
OPPO MP3 player specifications
| Model | S7H |
|---|---|
| Battery | 3.7 V 900 mAh |
| Continuous playback time | ≈22 hours |
| Dimensions / Weight | 87 mm × 54 mm × 11 mm, 76 g |
| Audio signal‑to‑noise ratio | 92 dB |
| Headphone output | 12 mW + 12 mW into 32 Ω (25 mW + 25 mW into 16 Ω) |
| Frequency response | 18 Hz – 20 kHz |
| FM tuning range | 76 MHz – 108 MHz |
| Operating temperature | 0 °C – 35 °C |
Source: OPPO S7H MP3 Player User Manual
All OPPO MP3 player documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- OPPO S7H MP3 Player User Manual 45 p
- OPPO MP3 Player User Manual 52 p
- OPPO MP3 Player User Manual 48 p
- OPPO MP3 Player User Manual 53 p
- OPPO XI11 MP3 Player User Manual 48 p
- OPPO XI1TK MP3 Player User Manual 48 p
- OPPO MP3 Player User Manual 44 p
- OPPO MP3 Player User Manual 52 p
- OPPO S7H MP3 Player User Manual 45 p
Questions answered in these manuals
How long can the player operate continuously on a full charge?
The device can play MP3 files continuously for about 22 hours on a full charge.
How do I register my OPPO MP3 player?
Visit the OPPO website (www.oppo.com) and complete product registration to become a VIP user.
How do I turn the device on and off?
Press the power key briefly to turn on; hold the power key long to turn off.
How do I register my OPPO product?
Visit the OPPO official website at www.oppo.com and register the product to become a VIP user.
How can I adjust the volume while playing music?
Short‑press or long‑press the volume button during playback to increase or decrease the volume.
How long can the OPPO MP3 player play music on a full charge?
At volume 15 with normal sound effect and screen saver, it can play for about 8 hours.
