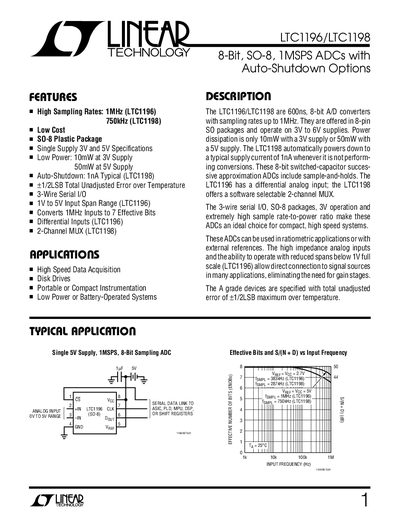

Linear Technology LTC1196/LTC1198 Datasheet
The LTC1196 and LTC1198 are 8‑bit switched‑capacitor successive‑approximation ADCs offering high sampling rates of up to 1 MHz (LTC1196) and 750 kHz (LTC1198). They operate from a single 3 V to 6 V supply, consume low power (10 mW at 3 V for LTC1196, 50 mW at 5 V for LTC1198), and include features such as a 3‑wire serial interface, differential inputs (LTC1196) and a software‑selectable 2‑channel MUX (LTC1198).
Typical applications include high‑speed data acquisition, portable instrumentation, and battery‑operated systems. The handbook contains detailed electrical characteristics, recommended operating conditions, and performance graphs to aid designers in integrating these converters into compact, high‑speed systems.
Linear Technology LTC1196 specifications
| Maximum Sampling Rate | 1 MHz (LTC1196), 750 kHz (LTC1198) |
|---|---|
| Power Dissipation | 10 mW at 3 V (LTC1196), 50 mW at 5 V (LTC1198) |
| Supply Voltage Range | 3 V to 6 V |
| Input Voltage Span (LTC1196) | 1 V to 5 V |
| Total Unadjusted Error | +½ LSB (typical) |
| Package Type | 8‑lead Plastic SOIC (SO‑8) |
All Linear Technology LTC1196 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum sampling rate of the LTC1196?
The LTC1196 can sample at up to 1 MHz.
What is the shutdown current of the LTC1198?
The LTC1198 shuts down to a typical supply current of 1 nA when not performing conversions.
