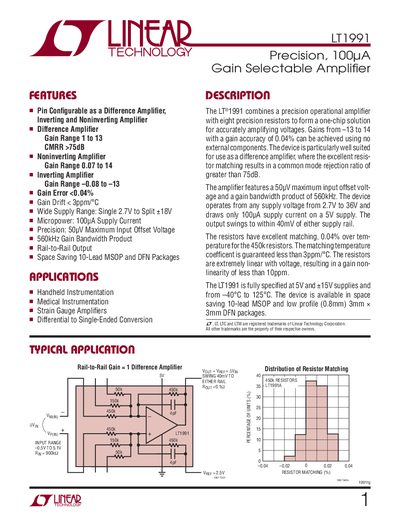

LINEAR TECHNOLOGY LT1991 Precision 100 A Gain Selectable Ampli er handbook
The LT1991 combines a precision operational amplifier with eight on‑chip resistors to provide selectable gains from –13 to 14 without external components. It offers a CMRR greater than 75 dB, a gain‑bandwidth product of 560 kHz, and a maximum input offset voltage of 50 µV. The device operates from 2.7 V to 36 V and draws only 100 pA supply current at 5 V.
Typical applications include handheld instrumentation, medical instrumentation, strain‑gauge amplifiers, and single‑ended conversion. The part is offered in space‑saving 10‑lead MSOP and low‑profile 3 mm × 3 mm DFN packages.
Linear Technology LT1991 specifications
| Gain range (difference amplifier) | 1 to 13 |
|---|---|
| Supply voltage range | 2.7 V to 36 V |
| Supply current (5 V) | 100 pA |
| Gain‑bandwidth product | 560 kHz |
| CMRR | >75 dB |
| Output swing | ±40 mV from either rail |
| Package options | 10‑lead MSOP, 3 mm × 3 mm DFN |
Source: LINEAR TECHNOLOGY LT1991 Precision 100 A Gain Selectable Ampli er handbook
