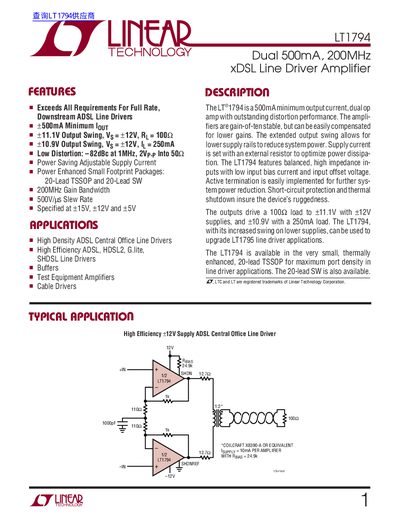

Linear Technology LT1794 Dual Op Amp Datasheet
The LT1794 is a dual voltage‑feedback op‑amp that delivers a minimum 500 mA output current with low distortion and a high gain‑bandwidth product. It features adjustable supply current, short‑circuit protection, and thermal shutdown, and is offered in a 20‑lead TSSOP or 20‑lead SW package for high‑density designs.
Typical applications include high‑density ADSL central‑office line drivers, SHDSL, HDSL2, G.lite, buffers, test‑equipment amplifiers, and cable drivers. The device’s extended output swing and low‑power operation make it suitable for multi‑port DSL cards and other high‑speed communication systems.
Linear Technology LT1794 specifications
| Gain Bandwidth | 200 MHz |
|---|---|
| Slew Rate | 500 V/µs |
| Operating Temperature Range | -40 °C to 85 °C |
| Typical Output Swing (12 V supply, 500 mA load) | +11.1 V |
| Typical Output Swing (12 V supply, 250 mA load) | +10.9 V |
| Package | 20‑lead TSSOP (wide 0.300) |
All Linear Technology LT1794 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical output swing at a +12 V supply with a 250 mA load?
With a +12 V supply and a 250 mA load, the output swing is typically +10.9 V.
What is the gain‑bandwidth product of the LT1794?
The device has a gain‑bandwidth product of 200 MHz.
What is the maximum output current of the LT1794?
The device can deliver up to 720 mA when powered at +15 V with a 10 Ω load.
