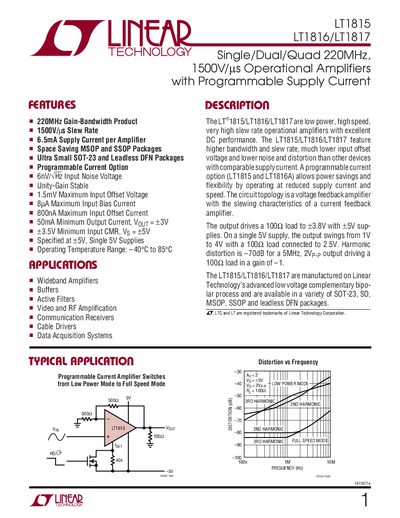

Linear Technology LT1815/LT1816/LT1817 Datasheet
The LT1815, LT1816 and LT1817 are low‑power, high‑speed operational amplifiers with a 1500 V/µs slew rate, 220 MHz gain‑bandwidth product and programmable supply current options. They are offered in ultra‑small SOT‑23, MSOP, SSOP and lead‑less DFN packages for use in wideband amplifiers, active filters, video/RF amplification, communication receivers and data‑acquisition systems.
The document provides absolute maximum ratings, detailed electrical characteristics, typical performance curves and package dimensions. It also includes ordering information for the various package types and typical application circuits such as band‑pass filters with independently settable gain and Q.
Linear Technology LT1816 specifications
| Gain‑Bandwidth Product | 220 MHz |
|---|---|
| Slew Rate | 1500 V/µs |
| Supply Current per Amplifier | 6.5 mA |
| Operating Temperature Range | ‑40 °C to 85 °C |
| Input Offset Voltage (typ) | 15 mV |
