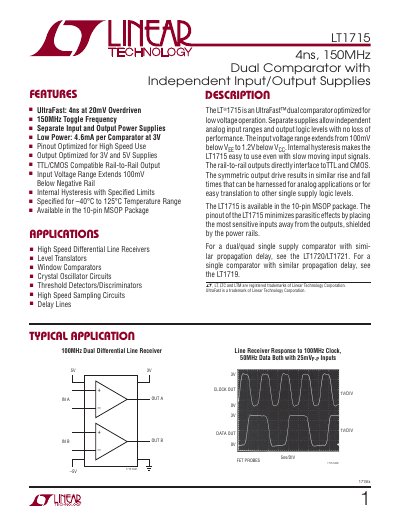

LINEAR TECHNOLOGY - LT1715 1 1715fa 4ns 150MHz Dual Comparator with Independent Input/Output Supplies Manual
The LT1715 is an UltraFast™ dual comparator optimized for low‑voltage operation. It features separate supplies for each input and output, allowing independent analog input ranges and output logic levels without performance loss. The device provides rail‑to‑rail TTL/CMOS compatible outputs and a symmetric drive for equal rise and fall times.
The part is supplied in a 10‑pin MSOP package and includes internal hysteresis, a wide input voltage range, and low power consumption. Detailed electrical characteristics, typical performance curves, and layout recommendations are provided for high‑speed applications up to 150 MHz.
Linear Technology LT1715 specifications
| Propagation Delay (typical) | 4 ns |
|---|---|
| Maximum Toggle Frequency | 150 MHz |
| Input Supply Voltage Range | 2.7 V to 12 V |
| Output Supply Voltage Range | 2.7 V to 6 V |
| Package | 10‑pin MSOP |
All Linear Technology LT1715 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical propagation delay of the LT1715?
The LT1715 typically has a propagation delay of about 4 ns.
What is the maximum toggle frequency of the LT1715?
The device can toggle up to 150 MHz.
What is the typical propagation delay of the LT1715?
Typical propagation delay is 4 ns when driven with a 20 mV overdrive.
How much power does the LT1715 consume per comparator?
It draws about 4.6 mA per comparator at a 3 V supply.
