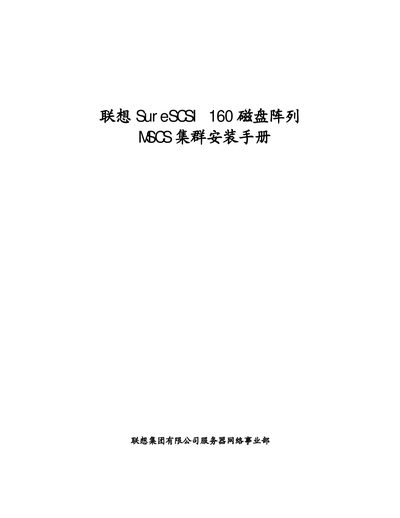

Lenovo SureSCSI 160 RAID Cluster Installation Guide

This document describes how to use Lenovo SureSCSI160 disk array and Microsoft Windows 2000 operating system to build Microsoft MSCS cluster.

Brand: Lenovo
Category: Server peripheral
Document type: Installation Guide
Language: Chinese
Pages: 19
File format: PDF
File size: 272 KB
Published: 16 March, 2012
Updated: 30 September, 2023
Model: SureSCSI 160
MD5 checksum: D5643EBE0C3A124282F62248355555ED
PDF: Lenovo SureSCSI 160 RAID Cluster Installation Guide PDF

About this manual

This guide provides step‑by‑step instructions for preparing the hardware and software, configuring network adapters, and installing the SureSCSI 160 RAID array as shared storage for a two‑node cluster. It covers required Windows 2000 Server installation, network settings for public and private clusters, and RAID controller configuration.

Detailed procedures include enabling clustering on the RAID controller, setting Hbst1D values, configuring the cluster name and IP addresses, installing Active Directory, and verifying the cluster operation on both nodes. This manual is written in Chinese.

What's inside

准备安装群集服务器
软件配置
硬件配置
网络要求
群集安装
安装 WINDOWS 2000 操作系统
配置专用网络适配器
配置公用网络适配器
验证连接
安装共享磁盘

Specifications

RAID controller	Mlex 170 FM D
Servers per cluster	2 servers, each with 2 NICs
Public network IP addresses	192.0.33.40, 192.0.33.44
Private network IP addresses	10.1.1.1, 10.1.1.2

Frequently asked questions

How should the Hbst1D values be set on the RAID cards?

Set Hbst1D to 6 on one card and 7 on the other via the Advanced Options menu.

What IP addresses are used for the public and private cluster networks?

Public network uses 192.0.33.40 and 192.0.33.44; private network uses 10.1.1.1 and 10.1.1.2.
