Start here

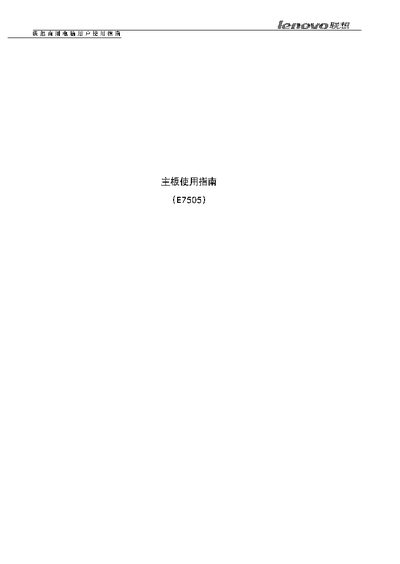

Lenovo E7505 Motherboard User Manual
This manual covers the setup and operation of the Lenovo E7505 server motherboard. It includes an introduction to the board, layout diagrams, and detailed procedures for installing CPUs, memory modules, and expansion cards.
Key sections describe the board's connectors, jumper configurations for CMOS clearing, driver installation for Windows operating systems, and specific guidance for installing the integrated SCSI and network controllers. This manual is written in Chinese.
Lenovo E7505 specifications
| Chipset | Intel E7505 Memory Controller Hub |
|---|---|
| ICH | Intel 82801DB |
| Memory Slots | 4 x 184‑pin DDR, dual‑channel Registered ECC DDR266 |
| Network Controller | Broadcom BCMS5703CIKHB Gigabit Ethernet |
| SCSI Controller | LSI 53C1030 Ultra320 |
All Lenovo E7505 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I clear the CMOS on this motherboard?
Power off the system, remove the power connector, then short pins 2 and 3 of the BAT1 jumper.
What type of memory can be installed?
The board accepts four 184‑pin DDR modules, supporting dual‑channel Registered ECC DDR266 memory.
