Key facts
- Brand
- Leica
- Model
- CM1950
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-05-10
Start here

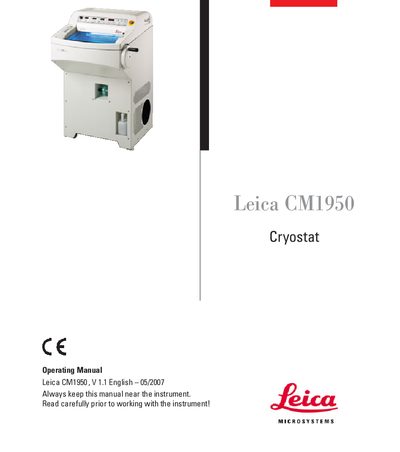

Leica CM1950 Cryostat Operating Manual
This manual covers important safety information, symbols, and personnel qualifications required to operate the Leica CM1950 cryostat. It details unpacking, site requirements, transport, and installation procedures, including power‑supply checks and handwheel assembly.
The guide also explains instrument controls, cutting tool preparation, specimen handling, and routine maintenance such as cleaning, fuse replacement, and lamp servicing. Technical data, troubleshooting tips, optional accessories, and warranty/service information are provided for complete instrument management.
Leica CM1950 specifications
| Power cable length | up to 3.5 m |
|---|---|
| Instrument type | Cryostat with encapsulated microtome |
| UV disinfection system | Included (UVC radiation) |
All Leica CM1950 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What safety equipment must be worn when operating the CM1950?
Operators must wear safety goggles, gloves, a laboratory coat, and a mask.
How long should the instrument rest after transport before it is turned on?
Wait at least 4 hours before turning the instrument on to allow oil and condensation to settle.
What does the CryoZone™ system do?
CryoZone™ creates a uniformly cool air zone around the specimen, knife and anti‑roll guide to maintain optimal temperature for consistent sectioning.
Which optional accessories are available for the CM1950?
Optional accessories include an actively cooled object head, vacuum section waste removal system, motorized sectioning drive, and various blade holders such as CryoZone™ and CE disposable holders.
