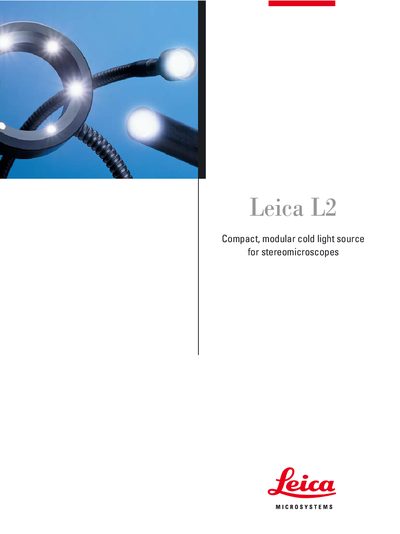

Leica L2 Compact Cold Light Source User Manual
The Leica L2 Compact is a modular cold light source designed for stereomicroscopes. It delivers high‑intensity, flicker‑free illumination while filtering infrared heat, offering various fiber‑optic guides for coaxial, vertical, and transparent lighting techniques. The unit is compact (125 × 110 × 150 mm) and lightweight (0.53 kg), making it easy to integrate with Leica StereoZoom® and MZ series microscopes.
The manual covers installation, lamp replacement, safety compliance, and detailed specifications such as voltage range, power consumption, and light output. It also lists accessories, part numbers, and wiring diagrams, ensuring users can maintain optimal performance and comply with UL, CE, and IEC standards.
Leica L2 Compact specifications
| Dimensions (W×D×H) | 125 mm × 110 mm × 150 mm |
|---|---|
| Weight | 0.53 kg |
| Operational voltage | 100 V – 240 V, 50/60 Hz |
| Power consumption | 20 W |
| Lamp type | Halogen reflector lamp 8 V/20 W |
| Lamp lifetime | 5000 h (level I), 1000 h (level II), 250 h (level I) |
| Color temperature | 3200 K |
| Maximum light guide bundle diameter | 6 mm |
| Light output (4.5 mm guide) | 54 lumens |
All Leica L2 Compact documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What voltage range does the Leica L2 operate on?
The Leica L2 works with a volt‑sensitive network component that accepts 100 V to 240 V at 50/60 Hz.
How long does the lamp last?
The halogen reflector lamp lasts up to 5 000 hours at level I, 1 000 hours at level II, and 250 hours at level I when used at maximum intensity.
What type of lamp does the Leica L2 use?
It uses a halogen reflector lamp rated at 8 V/20 W.
From: Leica L2 Compact Modular Cold Light Source User Manual
What is the light output of the Leica L2 at the fiber‑optic guide?
The Ø4.5 mm guide delivers 54 lumens and the Ø6.0 mm guide delivers 63 lumens.
From: Leica L2 Compact Modular Cold Light Source User Manual
