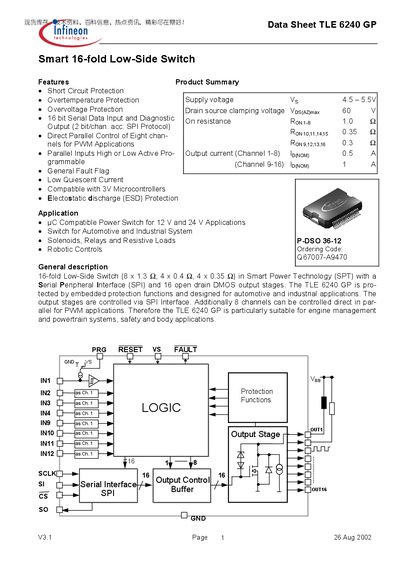

Infineon TLE6240GP Datasheet
Datasheet 23 pages · 829 KB · EN
The TLE6240GP smart power switch provides 16 low‑side DMOS outputs that can be controlled individually via a serial peripheral interface (SPI) or, for eight channels, directly in parallel for PWM applications. It includes built‑in protection such as short‑circuit, over‑temperature, over‑voltage and ESD protection, making it suitable for automotive and industrial power‑train systems.
The datasheet details the pin configuration, electrical characteristics, maximum ratings, timing specifications, and functional description of the device, along with ordering information and package dimensions.
Infineon TLE6240GP specifications
| Continuous Drain‑Source Voltage | 45 V |
|---|---|
| Output Current per Channel (1‑8) | 0.3 A |
| Electrostatic Discharge (ESD) Protection | 2000 V (HBM) |
Source: Infineon TLE 6240 GP Datasheet
