The TLE 6240 GP is a 16-channel low-side switch with short-circuit protection, overtemperature protection, and overvoltage protection. It can be controlled via the SPI interface and is suitable for automotive and industrial applications.

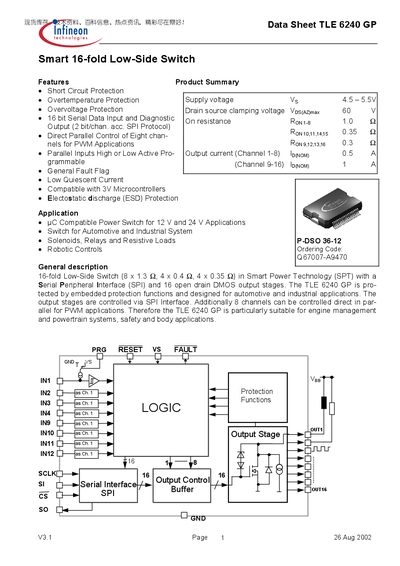

The TLE 6240 GP is a smart 16‑fold low‑side switch designed for automotive and industrial applications. It provides serial peripheral interface (SPI) control of 16 DMOS output stages and includes diagnostic feedback, short‑circuit, overtemperature, overvoltage and ESD protection.
Eight of the sixteen channels (1‑4 and 9‑12) can also be driven directly in parallel for PWM applications, with programmable Boolean (AND/OR) logic. The device operates from a 4.5 V to 5.5 V supply and supports up to 0.5 A per channel.
| Continuous Drain‑Source Voltage | 45 V |
|---|---|
| Output Current per Channel (1‑8) | 0.3 A |
| Electrostatic Discharge (ESD) Protection | 2000 V (HBM) |
