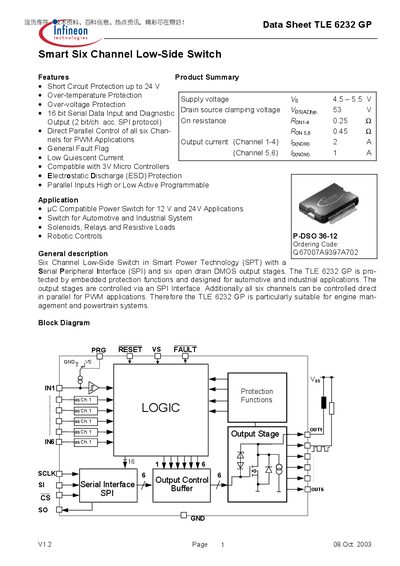

Infineon TLE6232 GP Datasheet
The TLE6232 GP is a six‑channel low‑side power switch in Infineon's Smart Power Technology (SPT). It features 16‑bit SPI data input, diagnostic output, and direct parallel control for PWM applications, making it suitable for engine management, power‑train systems, solenoids, relays, and robotic controls.
The device includes built‑in protection functions such as short‑circuit, over‑temperature, over‑voltage, and electrostatic discharge (ESD) protection. It operates from a 45 V–55 V supply, supports up to 3 A per channel (1‑4) and 1.5 A per channel (5‑6), and is offered in a P‑DSO 36‑12 package.
Infineon TLE6232 GP specifications
| Operating Temperature Range | -40 °C to +150 °C |
|---|---|
| Continuous Output Current per Channel (Ch 5‑6) | 1.5 A (linear decreasing) |
| ESD Protection (Human Body Model) | 2000 V |
| Package | P‑DSO 36‑12 |
Source: Infineon TLE6232 GP Datasheet
All Infineon TLE6232 GP documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How many output channels are available on the TLE6232 GP?
It provides six low‑side switch channels.
How can the six channels be controlled?
Each channel can be driven by its own input pin or via the 16‑bit SPI interface, and all six channels can be switched in parallel for PWM operation.
What is the maximum supply voltage for the TLE6232 GP?
The device is rated for a supply voltage up to 55 V.
