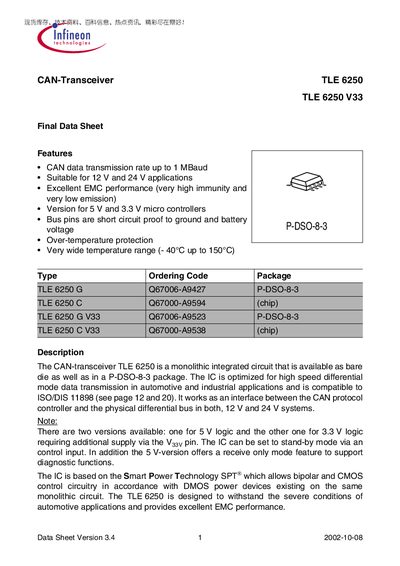

Infineon TLE 6250 CAN Transceiver Datasheet
The TLE 6250 is a monolithic CAN‑transceiver IC optimized for high‑speed differential data transmission in automotive and industrial applications. It is available in 5 V and 3.3 V logic versions and can operate in 12 V or 24 V systems, offering features such as over‑temperature protection and short‑circuit‑proof bus pins.
The datasheet includes pin configurations, functional block diagrams, electrical characteristics, absolute maximum ratings, and package outlines. It also describes the three operation modes—normal, receive‑only, and standby—and provides application notes for both 5 V and 3.3 V microcontroller logic supplies.
Infineon TLE 6250 specifications
| CAN data transmission rate | up to 1 Mbaud |
|---|---|
| Supply voltage range | -0.3 V to 16.5 V |
| Operating temperature range | -40 °C to 150 °C |
| CAN input voltage range | -40 V to 40 V |
| Junction temperature limit | -40 °C to 160 °C |
All Infineon TLE 6250 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What operating modes does the TLE 6250 support?
The TLE 6250 supports normal mode, receive‑only mode, and standby mode, controlled by the INH and RM pins.
Which logic voltage versions are available for the TLE 6250?
Two versions are offered: one for 5 V logic and another for 3.3 V logic.
What operating modes does the TLE 6250 support?
The TLE 6250 offers normal mode, receive‑only mode, and standby mode, selected by the INH and RM pins.
What is the maximum data rate of the TLE 6250?
The transceiver can transmit CAN data at rates up to 1 Mbaud.
