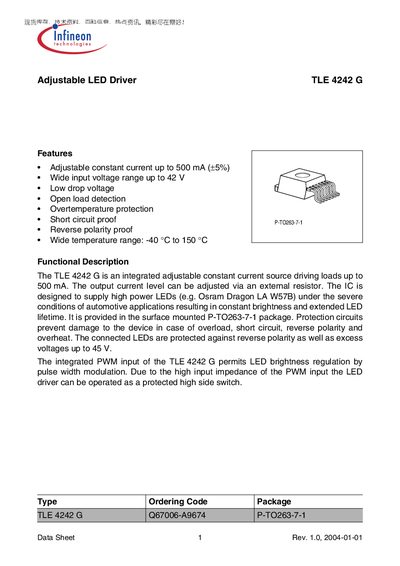

Infineon TLE 4242 G LED Driver Datasheet
The TLE 4242 G is an integrated adjustable constant‑current LED driver designed for automotive‑grade applications. It supplies up to 500 mA to high‑power LEDs and includes protection against overload, short‑circuit, reverse polarity, and over‑temperature.
Key features include a wide input voltage range (4.5 V to 42 V), PWM‑controlled brightness, open‑load detection, and a low drop voltage. Typical application circuits use an external shunt resistor to set the desired current, while the status output pin indicates load conditions. The device is offered in a surface‑mounted P‑TO263‑7‑1 package.
Infineon TLE4242G specifications
| Adjustable constant current | up to 500 mA |
|---|---|
| Input voltage range | 4.5 V to 42 V |
| Operating temperature range | -40 °C to 150 °C |
| Typical output current | 357 mA (typ.) |
| Maximum drop voltage | 0.7 V at 300 mA |
All Infineon TLE4242G documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum constant current the TLE 4242 G can drive?
It can drive a constant current up to 500 mA.
How is LED brightness controlled with the TLE 4242 G?
Brightness is regulated by the PWM input, which adjusts the duty cycle.
What is the maximum adjustable current of the TLE4242G?
The driver can be adjusted to supply up to 500 mA of constant current.
What input voltage range does the TLE4242G support?
It operates with an input voltage between 4.5 V and 42 V.
