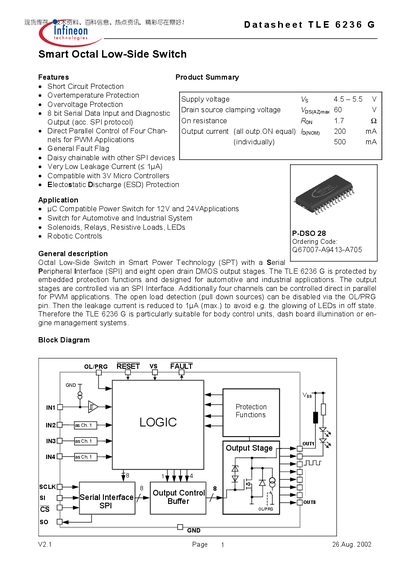

Infineon TLE6236G Smart Octal Low‑Side Switch Datasheet
The TLE6236G is an octal low‑side power switch with SPI control, designed for automotive and industrial applications such as body control units, dashboard illumination and engine management. It offers short‑circuit, overtemperature, overvoltage and ESD protection, and can drive solenoids, relays, LEDs and other loads.
The datasheet provides full pin‑out, maximum ratings, electrical characteristics, timing diagrams and package information. Key parameters include a 4.5‑5.5 V supply range, 45 V drain‑source rating, 1.7 Ω on‑resistance and up to 200 mA continuous output per channel.
Infineon TLE6236G specifications
| Supply Voltage (Vs) | 4.5 – 5.5 V |
|---|---|
| Continuous Drain‑Source Voltage (Vds) | 45 V |
| On‑Resistance (Rds(on)) | 1.7 Ω |
| Maximum Continuous Output Current per Channel | 200 mA |
| Output Current Limit | 500 mA (typical) |
| Power Dissipation (P_R) on PCB | 2 W |
| Operating Temperature Range | -40 °C to +150 °C |
| ESD Protection (HBM) | 2000 V |
| Serial Clock Frequency | up to 5 MHz |
Source: Infineon TLE6236G Smart Octal Low‑Side Switch Datasheet
All Infineon TLE6236G documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the TLE6236G?
The device operates from 4.5 V to 5.5 V supply voltage.
From: Infineon TLE6236G Smart Octal Low‑Side Switch Datasheet
How many output channels does the TLE6236G have?
It provides eight independent low‑side power channels.
From: Infineon TLE6236G Smart Octal Low‑Side Switch Datasheet
