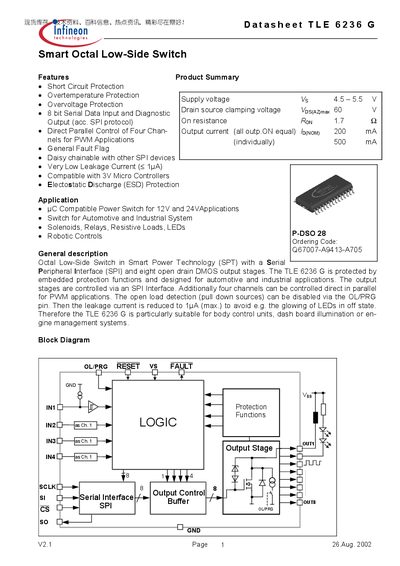

The TLE 6236 G is an eight-channel low-side switch that supports the SPI protocol and has short circuit protection, overcurrent protection, and overtemperature protection. It has a low leakage current of 1µA and is suitable for automotive and industrial systems.
The TLE6236G is an octal low‑side power switch that uses an SPI interface to control eight DMOS output stages. It includes short‑circuit, overtemperature, overvoltage and zener‑clamp protection, and offers diagnostic feedback via a fault flag.
The device can drive automotive and industrial loads such as solenoids, relays, LEDs and motor‑control circuits. Channels 1‑4 can be driven in parallel for PWM applications, and the part is supplied in a 28‑lead P‑DSO package.
| Supply Voltage (Vs) | 4.5 V – 5.5 V |
|---|---|
| Continuous Output Current per Channel | 250 mA (200 mA when all 8 channels on) |
| Operating Temperature Range | ‑40 °C to +150 °C |
