TLE 6250 is a CAN transceiver suitable for 12V and 24V applications. It features high-speed transmission, excellent EMC performance, wide temperature range, etc. It is suitable for automotive and industrial applications.

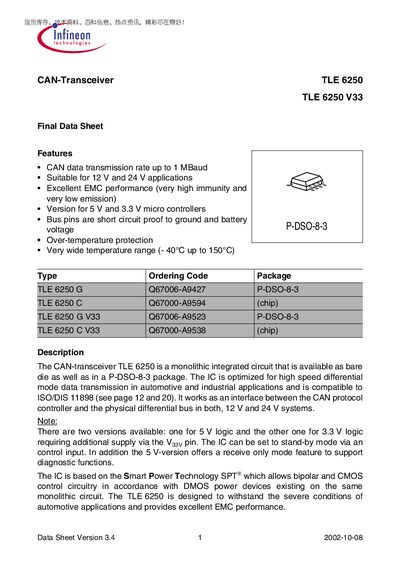

The TLE 6250 V33 is a monolithic CAN‑transceiver IC offered in a P‑DSO‑8‑3 package. It supports 12 V and 24 V bus systems and is available in versions for 5 V and 3.3 V microcontroller logic. The device features high‑speed data transmission up to 1 Mbaud, excellent EMC performance, over‑temperature protection, and a wide operating temperature range.
The datasheet includes pin definitions, functional block diagrams, mode operation (normal, receive‑only, standby), electrical characteristics, absolute maximum ratings, and package dimensions. It also contains legal notices and contact information for Infineon Technologies AG.
| Data transmission rate | up to 1 Mbaud |
|---|---|
| Supply voltage range | -0.3 V to 16.5 V |
| CAN input voltage range | -40 V to 40 V |
| Junction temperature range | -40 °C to 160 °C |
| Operating temperature range | -40 °C to 150 °C |
| Logic versions | 5 V and 3.3 V |
| Over‑temperature protection | Yes |
The TLE 6250 offers normal mode, receive‑only mode, and standby mode, selected by the INH and RM pins.
The transceiver can transmit CAN data at rates up to 1 Mbaud.
