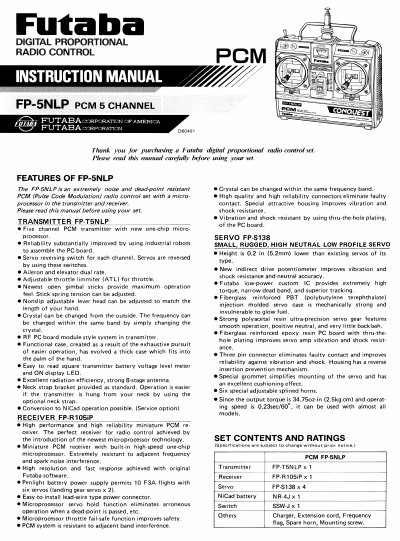

This manual provides instructions for the Futaba FP-5NLP digital proportional radio control set, which includes the FP-T5NLP transmitter, FP-R105iP receiver, and FP-S138 servos. The system features a microprocessor in both the transmitter and receiver for high noise and dead-point resistance.
| Modulation system | PCM FM |
|---|---|
| Transmitting frequency | 72MHz bands |
| Receiving frequency | 72MHz bands |
| Operating angle | One side 45° or more (including trim) |
| Output torque | 34.75oz-in (2.5kg.cm) |
| Operating speed | 0.23sec/60° |
| Transmitter weight | 1.37oz (35g) |
| Servo weight | 1.45oz (41g) |
The frequency can be changed within the same band by simply changing the crystal.
The receiver battery can be used about 10 times at 10 minutes per flight between rechargings.
Connect the FBC-8B charger to the transmitter jack and receiver battery, then plug the charger into a 117VAC outlet.
