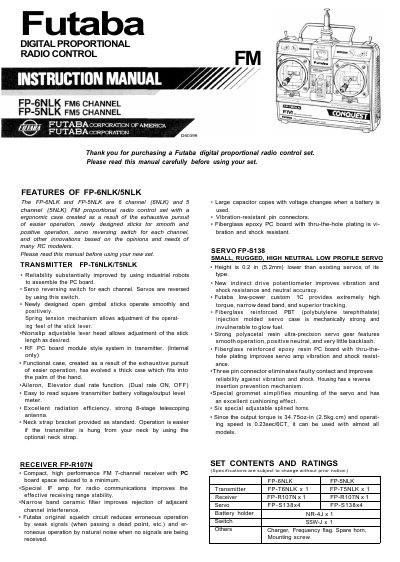

Futaba FP-6NLK/FP-5NLK Digital Proportional Radio Control Manual

This manual introduces the features and characteristics of Futaba digital proportional radio control set

Brand: Futaba
Category: Other
Document type: User Manual
Language: English
Pages: 6
File format: PDF
File size: 1.4 MB
Published: 09 August, 2012
Updated: 30 September, 2023
Models: FP-6NLK, FP-5
MD5 checksum: 7A14DA8271E750224963F1BD8A86D567
PDF: Futaba FP-6NLK/FP-5NLK Digital Proportional Radio Control Manual PDF

About this manual

This manual provides instructions for the Futaba FP-6NLK (6-channel) and FP-5NLK (5-channel) digital proportional radio control sets. It details the features of the FP-T6NLK/T5NLK transmitter, including its ergonomic design, servo reversing switches, and dual rate functions. The document also covers the FP-R107N receiver and FP-S138 servo specifications.

What's inside

Features of FP-6NLK/5NLK
Transmitter FP-T6NLK/T5NLK
Servo FP-S138
Receiver FP-R107N
Set Contents and Ratings
Operating System
Controls
Servo Reversing Switches
Charging Batteries
Servo Mounting

Specifications

Channels	6 channel (6NLK) and 5 channel (5NLK)
Transmitting Frequency	53, 72MHz bands
Modulation System	FM
Power Requirement (Transmitter)	9.6V NiCd battery
Current Drain (Transmitter)	190mA
Receiving Frequency	53, 72MHz bands
Operating Angle	One side 45° or more
Output Torque	34.75oz-in (2.5kg-cm)
Operating Speed	0.23 sec/60°

Frequently asked questions

What batteries are required for the transmitter?

The transmitter requires a 9.6V NiCd battery.

What batteries are required for the receiver?

The receiver requires a 4.8V NiCd battery.

How do I reverse the direction of a servo?

Use the servo reversing switch for the specific channel to reverse the direction of operation.

How long should the batteries be charged?

The batteries should be charged for about 15 hours.
