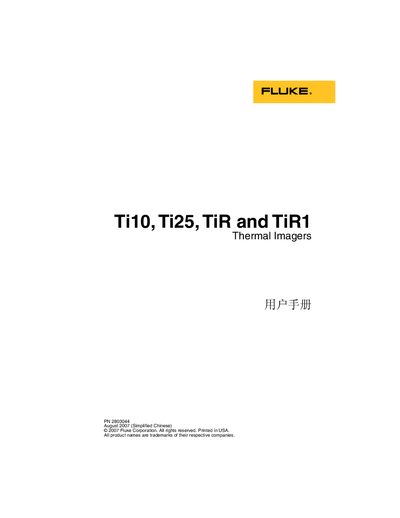

The document is a user manual for Fluke's Ti10, Ti25, TiR and TiR1 thermal imagers, providing information on product warranty and liability limitations.
This manual introduces the Fluke Ti10, Ti25, TiR and TiR1 handheld thermal imagers, describing their key features, controls, and the SmartView™ software used for image analysis. It covers safety guidelines, unboxing, battery charging, and basic operation such as powering on, focusing, and capturing images.
Detailed sections explain menu navigation, language selection, image adjustment (palette, range, IR‑Fusion), data storage on SD cards, and advanced functions like voice notes and emissivity settings for the Ti25 and TiR1 models. Warranty information and contact details for Fluke support are also provided. This manual is written in Chinese.
| Temperature range (Ti10) | -20 °C to +250 °C |
|---|---|
| Temperature range (Ti25) | -20 °C to +350 °C |
| Temperature range (TiR, TiR1) | -20 °C to +100 °C |
| Accuracy (Ti10, TiR) | ± 5 °C or 5 % |
| Weight | 1.1 kg (2.35 lb) |
| Battery life (continuous use) | 3 to 4 hours |
Charge the battery for at least two hours before the first use.
The warranty period is two years from the date of shipment, with a 90‑day parts and service warranty.
Select the “Change Display Language” option in the menu.
The Ti25 can measure temperatures from –20 °C up to +350 °C.
