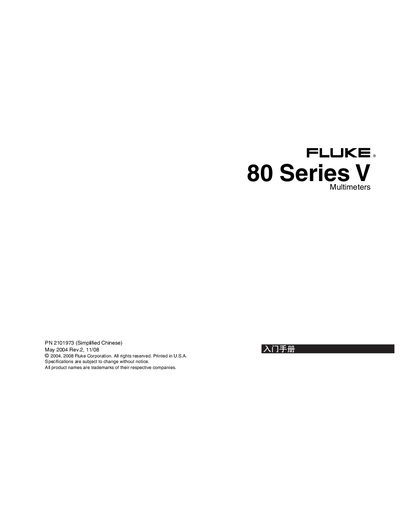

This is the product manual of Fluke 80 Series V multimeter, which introduces the features of multimeter, including functions, power-on power options, auto power off, Input Alert™ function, low pass filter, bar indicator, AutoHOLD mode, relative mode, maintenance and so on
This manual covers safety notices, warranty terms, and contact information for Fluke support. It explains the limited lifetime warranty, registration process, and service procedures for the 80 Series V multimeter.
The guide details the multimeter’s functions, such as AutoHOLD, relative mode, low‑pass filter, and display options, and lists technical specifications including voltage ratings, display resolution, battery type, dimensions, and environmental limits. This manual is written in Chinese.
| Display resolution | 6000 counts, 4 updates/sec |
|---|---|
| Analog bar graph segments | 33 segments, 40 updates/sec |
| Operating temperature | -20 °C to +55 °C |
| Maximum operating altitude | 2000 m |
| Battery type | 9 V zinc (NEDA 1604, 6F22, 006P) |
| Weight | 12.5 oz (355 g) |
| Dimensions | 1.25 × 3.41 × 7.35 in |
| Maximum input voltage | 1000 V RMS |
| Fuse protection | 44 A/100 A, 1000 V fast‑blow |
| IP rating | IP30 |
It uses a 9 V zinc battery (NEDA 1604, 6F22, or 006P).
The highest voltage between any terminal and ground is 1000 V RMS.
