3097A2 accelerometers, analog output, with excellent linearity and frequency response.

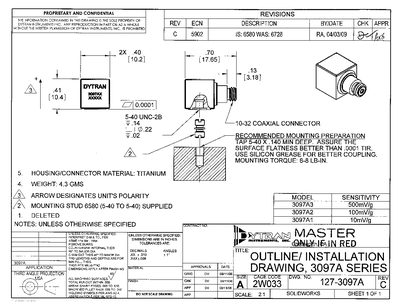

The Dytran 3097A Series accelerometer manual provides detailed information on the device's mechanical and electrical characteristics, including sensitivity options, frequency response, and operating temperature ranges. It also covers recommended mounting procedures, torque specifications, and connector types.
Additional sections list supplied accessories, performance specifications for each model variant, and environmental limits, helping users select the appropriate configuration and ensure proper installation.
| Sensitivity (3097A3) | 500 mV/g |
|---|---|
| Sensitivity (3097A2) | 100 mV/g |
| Sensitivity (3097A1) | 10 mV/g |
| Operating Temperature (3097A3) | -60 °C to 200 °C |
| Operating Temperature (3097A) | -60 °C to 150 °C |
| Weight | 0.15 oz |
| Mounting Torque | 6‑8 lb‑in |
The 3097A2 model has a sensitivity of 100 mV per g.
A Model 6580 mounting stud (5‑40 to 5‑40) is supplied.
The recommended mounting torque is 6‑8 lb‑in.
