The CENTRAL SEMICONDUCTOR 3.0 Amp Surface Mount Silicon Schottky Rectifier is a high quality, well constructed, highly reliable component designed for use in all types of commercial, industrial, entertainment, computer, and automotive applications.

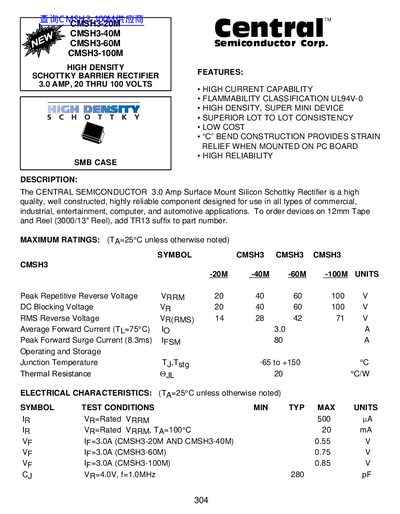

This document describes the Central Semiconductor Corp. CMSH3 series of 3.0 Amp Surface Mount Silicon Schottky Rectifiers. These components are designed as high quality, reliable devices for use in commercial, industrial, entertainment, computer, and automotive applications.
The datasheet provides maximum ratings including peak repetitive reverse voltage from 20 to 100 volts and average forward current of 3.0 amps. It also lists electrical characteristics such as forward voltage drop and junction capacitance, along with physical dimensions and marking codes for the SMB case package.
| Average Forward Current (TL=75°C) | 3.0 A |
|---|---|
| Peak Forward Surge Current (8.3ms) | 80 A |
| Operating and Storage Junction Temperature | -65 to +150 °C |
| Thermal Resistance OJL | 20 °C/w |
The available peak repetitive reverse voltages are 20, 40, 60, and 100 volts.
The typical forward voltage drop (VF) at IF=3.0A for the CMSH3-100M is 0.85 V.
