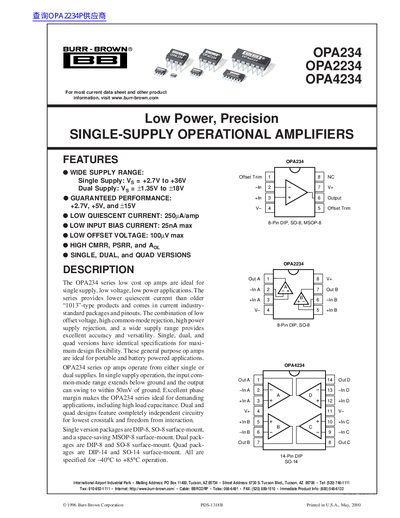

Burr-Brown OPA234/OPA2234/OPA4234 Low Power Precision Operational Amplifiers Datasheet
The document describes the OPA234 series of low cost operational amplifiers designed for single supply, low voltage, and low power applications. The series includes single, dual, and quad versions with identical specifications to offer maximum design flexibility.
These op amps feature a wide supply range from +2.7V to +36V (single) or ±1.35V to ±18V (dual), guaranteed performance at +2.7V, +5V, and +15V, and low quiescent current of 250µA per amp. They are available in industry-standard packages including DIP-8, SO-8, MSOP-8, DIP-14, and SO-14.
Burr-Brown OPA2234 specifications
| Input Bias Current | 25nA max |
|---|---|
| Offset Voltage (Vom = 2.5V) | +100 uV typical |
| Gain-Bandwidth Product | 0.35 MHz |
| Slew Rate | 0.2 V/us |
| Operating Temperature Range | -40 to +125 C |
All Burr-Brown OPA2234 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range for these amplifiers?
The specified operating temperature range is -40°C to +85°C.
Can this amplifier drive a capacitive load of 1000 pF?
Yes, the device supports stable operation with a capacitive load drive up to 1000 pF.
