Start here

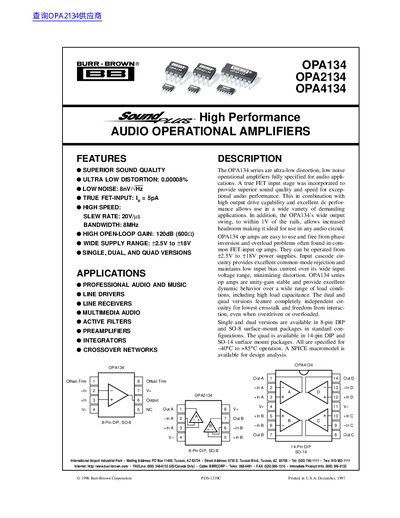

BURR BROWN OPA134/OPA2134/OPA4134 handbook(1)
This document is a technical datasheet for the Burr-Brown OPA134 series of high-performance audio operational amplifiers. The series includes single (OPA134), dual (OPA2134), and quad (OPA4134) versions available in DIP and surface-mount packages.
Read onlineBurr-Brown OPA134 specifications
| Total Harmonic Distortion + Noise | 0.00008% (R_L = 2k) |
|---|---|
| Input Voltage Noise Density | 8 nV/√Hz at 1kHz |
| Slew Rate | 20 V/µs |
| Bandwidth (Gain-Bandwidth Product) | 8 MHz |
| Open-Loop Voltage Gain | 120 dB |
| Input Bias Current | 5 pA typical |
| Operating Temperature Range (Specified) | -40°C to +85°C |
All Burr-Brown OPA134 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the specified operating voltage range for the OPA134 series?
The specified operating voltage range is +2.5V to +18V.
What is the maximum output current capability of the amplifier?
The maximum output current is +35 mA.
What is the specified operating voltage range for these amplifiers?
The amplifiers operate from a power supply of +2.5V to +18V.
What is the maximum output current capability of the OPA134 op amps?
The output current is rated at +35 mA.
What is the supply voltage range for the OPA134 series?
The OPA134 series can operate from ±2.5 V up to ±18 V.
From: Burr-Brown OPA134/OPA2134/OPA4134 Audio Operational Amplifier Datasheet
What is the typical total harmonic distortion of the OPA134 at 1 kHz?
The THD+Noise is specified as 0.00008 % at 1 kHz with a 2 kΩ load.
From: Burr-Brown OPA134/OPA2134/OPA4134 Audio Operational Amplifier Datasheet
