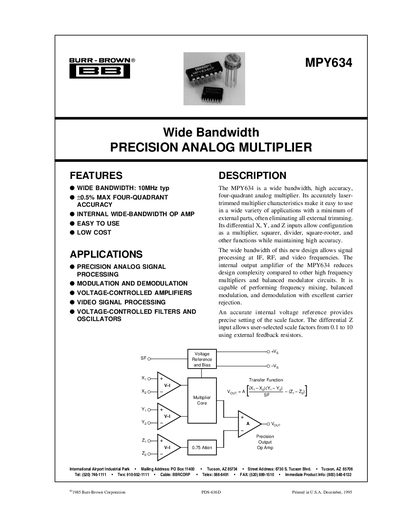

Burr‑Brown MPY634 Analog Multiplier Datasheet
The MPY634 is a wide‑bandwidth, high‑accuracy four‑quadrant analog multiplier. Its laser‑trimmed characteristics give low error and allow operation as a multiplier, squarer, divider, square‑rooter, and other functions with minimal external parts. The internal output amplifier simplifies designs for IF, RF, and video‑frequency signal processing.
Typical applications include precision analog signal processing, modulation/demodulation, voltage‑controlled amplifiers, video signal processing, and voltage‑controlled filters and oscillators. The device can be configured for various functions using its differential X, Y, and Z inputs and offers scale‑factor adjustment via an external resistor on the SF pin.
Burr-Brown MPY634 specifications
| Typical Bandwidth | 10 MHz |
|---|---|
| Supply Voltage (operating range) | +8 V to +20 VDC |
| Supply Voltage (rated) | 15 VDC |
| Input Voltage Range (differential) | ±10 V |
All Burr-Brown MPY634 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical bandwidth of the MPY634?
The typical bandwidth is 10 MHz.
What supply voltage range can the MPY634 operate over?
It can operate from +8 V up to +20 VDC.
What is the typical bandwidth of the MPY634?
The MPY634 has a typical bandwidth of 10 MHz.
From: Texas Instruments MPY634 Wide Bandwidth Precision Analog Multiplier Datasheet
How can the scale factor be adjusted?
Connect a resistor between the SF pin and the –V supply; a typical value is 54 kΩ.
From: Texas Instruments MPY634 Wide Bandwidth Precision Analog Multiplier Datasheet
