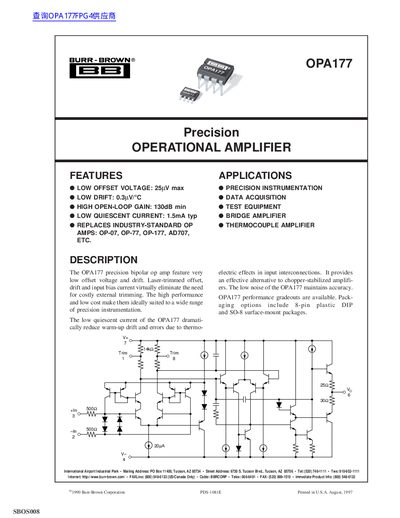

Burr-Brown OPA177 Operational Amplifier Datasheet
The OPA177 is a precision bipolar operational amplifier featuring very low offset voltage and drift, making it suitable for precision instrumentation, data acquisition, and test equipment. It serves as an effective alternative to chopper-stabilized amplifiers and replaces industry-standard op amps such as the OP-07, OP-77, and AD707.
The document details electrical specifications including input offset voltage, bias current, noise, open-loop gain, and frequency response. It also includes absolute maximum ratings, package ordering information for 8-pin Plastic DIP and SO-8 surface-mount packages, and typical performance curves illustrating characteristics like total harmonic distortion, warm-up offset drift, and output swing.
Burr-Brown OPA177 specifications
| Input Offset Voltage | 25uV max |
|---|---|
| Open-Loop Gain | 130dB min |
| Quiescent Current | 1.5mA typ |
All Burr-Brown OPA177 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What op amps does the OPA177 replace?
The OPA177 replaces industry-standard op amps such as the OP-07, OP-77, OP-177, and AD707.
What are the available package options for the OPA177?
Packaging options include 8-pin plastic DIP and SO-8 surface-mount packages.
What op amps does the OPA177 replace?
The OPA177 replaces industry-standard op amps such as the OP-07, OP-77, OP-177, and AD707.
What are the available packaging options for the OPA177?
The OPA177 is available in 8-pin plastic DIP and SO-8 surface-mount packages.
