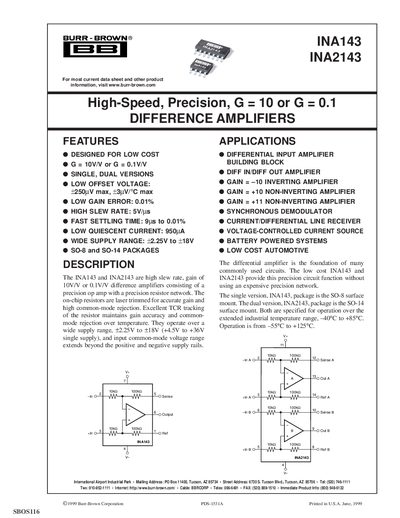

Burr-Brown INA143 and INA2143 Difference Amplifier Datasheet
The INA143 (single‑ended) and INA2143 (dual) are high‑speed, precision difference amplifiers offering gains of 10 V/V or 0.1 V/V. They feature laser‑trimmed on‑chip resistors for accurate gain and excellent common‑mode rejection, making them suitable for differential input, voltage‑controlled current sources, battery‑powered systems and automotive applications.
The devices operate from a supply range of +2.25 V to +18 V, have a low offset voltage of +250 µV max, a low gain error of 0.01 %, a slew rate of 5 V/µs, and a quiescent current of about 0.95 µA per amplifier. They are offered in SO‑8 (INA143) and SO‑14 (INA2143) surface‑mount packages and are specified for operation over –55 °C to +125 °C.
Burr-Brown INA143 specifications
| Offset Voltage (max) | 250 µV |
|---|---|
| Gain Error (typ) | 0.01 % |
| Slew Rate | 5 V/µs |
| Quiescent Current (per amp) | ≈0.95 µA |
| Supply Voltage Range | +2.25 V to +18 V |
| Input Impedance (Differential) | 20 kΩ |
| Common‑Mode Rejection Ratio | ≈140 dB |
| Small‑Signal Bandwidth (‑3 dB) | 0.15 MHz |
Source: Burr-Brown INA143 and INA2143 Difference Amplifier Datasheet
All Burr-Brown INA143 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the INA143 and INA2143?
Both devices operate from +2.25 V up to +18 V.
From: Burr-Brown INA143 and INA2143 Difference Amplifier Datasheet
What is the typical offset voltage of these amplifiers?
The offset voltage is specified as a maximum of +250 µV.
From: Burr-Brown INA143 and INA2143 Difference Amplifier Datasheet
What gain options are available for the INA143 and INA2143?
The amplifiers can be configured for a gain of 10 V/V or 0.1 V/V.
From: Burr-Brown INA143 and INA2143 Difference Amplifiers Datasheet
What is the supply voltage range for these amplifiers?
They operate from +2.25 V up to +18 V.
From: Burr-Brown INA143 and INA2143 Difference Amplifiers Datasheet
