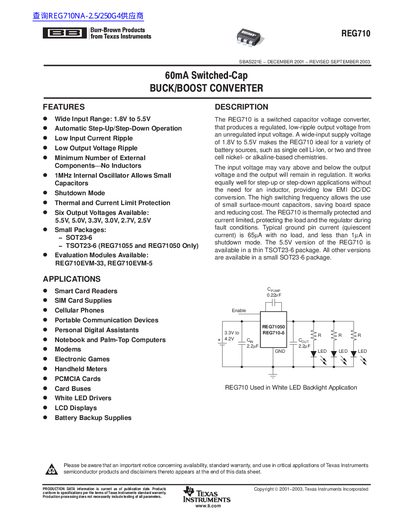

Texas Instruments REG710 Switched-Capacitor Converter Datasheet
The REG710 is a switched capacitor voltage converter that produces a regulated, low-ripple output voltage from an unregulated input voltage. It operates as a step-up or step-down converter without requiring an external inductor, making it ideal for battery-powered applications like smart card readers and cellular phones. The device features a wide input range of 1.8V to 5.5V and supports six fixed output voltages.
Read onlineBurr-Brown REG710 specifications
| Input Voltage Range | 1.8V to 5.5V |
|---|---|
| Output Current | 60mA |
| Oscillator Frequency | 1.0 MHz |
| Quiescent Current | 65uA |
| Output Voltages | 5.5V, 5.0V, 3.3V, 3.0V, 2.7V, 2.5V |
| Thermal Shutdown Temperature | 160°C |
Source: Texas Instruments REG710 Switched-Capacitor Converter Datasheet
All Burr-Brown REG710 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Does the REG710 require an external inductor?
No, the REG710 operates without the need for an external inductor.
From: Texas Instruments REG710 Switched-Capacitor Converter Datasheet
What is the input voltage range for the REG710?
The input voltage range is 1.8V to 5.5V.
From: Texas Instruments REG710 Switched-Capacitor Converter Datasheet
What is the input voltage range of the REG710?
The REG710 operates from 1.8 V up to 5.5 V input.
How many output voltage options does the REG710 provide?
It offers six selectable output voltages: 5.5 V, 5.0 V, 3.3 V, 3.0 V, 2.7 V, and 2.5 V.
