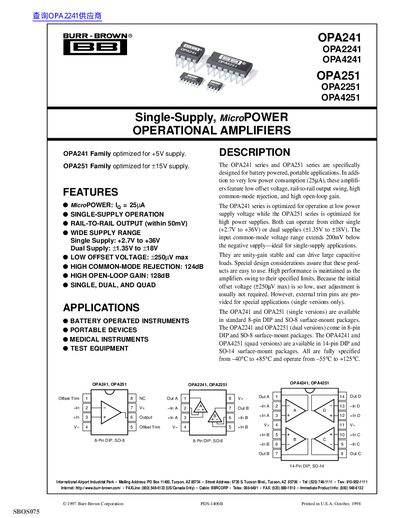

BURR BROWN OPA241/OPA2241/OPA4241/OPA251/OPA2251/OPA4251 handbook
The document describes the OPA241 series (optimized for +5V supply) and the OPA251 series (optimized for ±15V supply). Both series feature MicroPOWER technology with a quiescent current of 25µA, rail-to-rail output swing within 50mV of the rails, and high common-mode rejection. They are designed for battery-operated instruments, portable devices, medical equipment, and test applications.
Read onlineBurr-Brown OPA2241 specifications
| Quiescent Current (per amplifier) | 25 µA |
|---|---|
| Input Offset Voltage (Max) | ±250 µV |
| Common-Mode Rejection Ratio (Min) | 124 dB |
| Open-Loop Voltage Gain (Typ) | 128 dB |
| Supply Voltage Range (Single) | +2.7V to +36V |
| Operating Temperature Range | -55°C to +125 °C |
Source: BURR BROWN OPA241/OPA2241/OPA4241/OPA251/OPA2251/OPA4251 handbook
All Burr-Brown OPA2241 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the main applications for these amplifiers?
They are designed for battery operated instruments, portable devices, medical instruments, and test equipment.
From: BURR BROWN OPA241/OPA2241/OPA4241/OPA251/OPA2251/OPA4251 handbook
Which series is optimized for +5V supply?
The OPA241 Family is optimized for +5V supply.
From: BURR BROWN OPA241/OPA2241/OPA4241/OPA251/OPA2251/OPA4251 handbook
What supply voltage ranges can the OPA241 operate from?
It can operate from a single supply of +2.7 V to +36 V or a dual supply of +1.35 V to +18 V.
From: Burr‑Brown OPA241/OPA2241/OPA4241/OPA251/OPA2251/OPA4251 Operational Amplifiers Handbook
What is the maximum input offset voltage for these amplifiers?
The maximum input offset voltage is +250 µV.
From: Burr‑Brown OPA241/OPA2241/OPA4241/OPA251/OPA2251/OPA4251 Operational Amplifiers Handbook
