The OPA234 series low cost op amps are ideal for single supply, low voltage, low power applications. The series provides lower quiescent current than older “1013”-type products and comes in current industry- standard packages and pinouts. The combination of low offset voltage, high common-mode rejection, high power supply rejection, and a wide supply range provides excellent accuracy and versatility. Single, dual, and quad versions have identical specifications for maximum design flexibility.

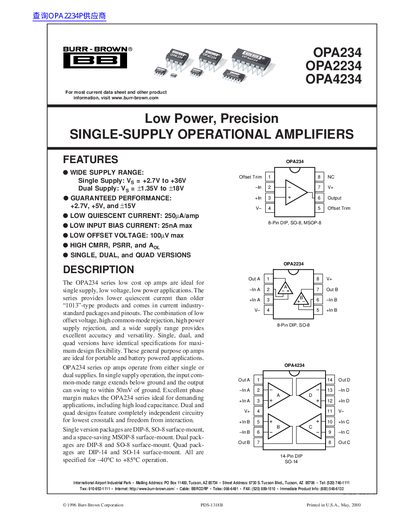

This document provides technical data for the Burr-Brown OPA234 series of low-power, precision operational amplifiers. The series includes single (OPA234), dual (OPA2234), and quad (OPA4234) versions designed for single-supply operation with a wide voltage range from +2.7V to +36V.
| Input Bias Current | 25nA max |
|---|---|
| Offset Voltage (Vom = 2.5V) | +100 uV typical |
| Gain-Bandwidth Product | 0.35 MHz |
| Slew Rate | 0.2 V/us |
| Operating Temperature Range | -40 to +125 C |
The specified operating temperature range is -40°C to +85°C.
Yes, the device supports stable operation with a capacitive load drive up to 1000 pF.
