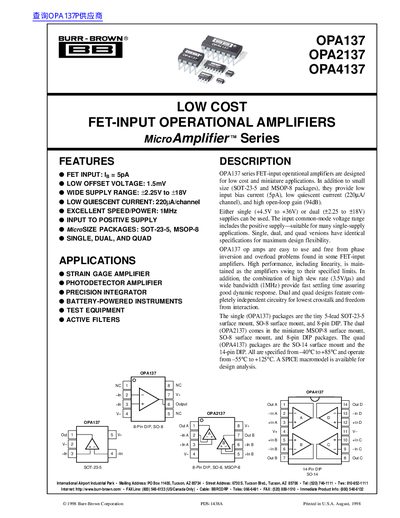

Burr-Brown OPA137/OPA2137/OPA4137 Low Cost FET-Input Operational Amplifiers Datasheet
The document describes the OPA137 series of low-cost FET-input operational amplifiers designed for miniature applications. The series includes single (OPA137), dual (OPA2137), and quad (OPA4137) versions available in various surface mount and DIP packages. Key features include a low input bias current of 5pA, low quiescent current of 220 µA per channel, and an excellent speed/power ratio with a gain-bandwidth product of 1MHz.
Read onlineBurr-Brown OPA137 specifications
| Input Bias Current (IB) | 5pA |
|---|---|
| Offset Voltage (VOS) | 1.5mV |
| Gain-Bandwidth Product (GBW) | 1MHz |
| Slew Rate (SR) | 3.5V/µs |
| Quiescent Current (IQ) | 220 µA/channel |
| Operating Temperature Range | -40°C to +85°C (Specified) |
Source: Burr-Brown OPA137/OPA2137/OPA4137 Low Cost FET-Input Operational Amplifiers Datasheet
All Burr-Brown OPA137 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Burr-Brown OPA137/OPA2137/OPA4137 Low Cost FET-Input Operational Amplifiers Datasheet 9 p
- Burr-Brown OPA137/OPA2137/OPA4137 Operational Amplifiers Datasheet 8 p
- Burr-Brown OPA137/OPA2137/OPA4137 Operational Amplifiers Datasheet 8 p
- Burr-Brown OPA137, OPA2137, OPA4137 Operational Amplifier Datasheet 10 p
Questions answered in these manuals
What is the maximum operating temperature range for these amplifiers?
The devices are specified from -40 °C to +85 °C and can operate from -55 °C to +125 °C.
From: Burr-Brown OPA137/OPA2137/OPA4137 Low Cost FET-Input Operational Amplifiers Datasheet
What is the maximum supply voltage range for dual supplies?
The operating voltage range for dual supplies is ±2.25V to ±18V.
From: Burr-Brown OPA137/OPA2137/OPA4137 Low Cost FET-Input Operational Amplifiers Datasheet
What are the available package types for the OPA137 series?
The single OPA137 is available in SOT-23-5, SO-8, and DIP packages. The dual OPA2137 comes in MSOP-8, SO-8, and DIP. The quad OPA4137 is available in SO-14 and DIP.
From: Burr-Brown OPA137/OPA2137/OPA4137 Operational Amplifiers Datasheet
What is the input common-mode voltage range?
The input common-mode voltage range includes the positive supply, making them suitable for many single-supply applications.
From: Burr-Brown OPA137/OPA2137/OPA4137 Operational Amplifiers Datasheet
What is the maximum quiescent current per channel?
The typical quiescent current is 220 uA per channel.
From: Burr-Brown OPA137/OPA2137/OPA4137 Operational Amplifiers Datasheet
What is the minimum supply voltage for dual operation?
Dual supplies can be used down to +2.25V.
From: Burr-Brown OPA137/OPA2137/OPA4137 Operational Amplifiers Datasheet
