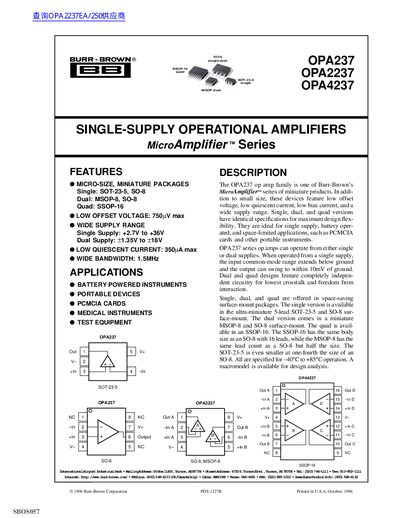

Burr-Brown OPA237/OPA2237/OPA4237 Operational Amplifier Datasheet
This document is a technical datasheet for the OPA237, OPA2237, and OPA4237 operational amplifier family from Burr-Brown. These devices belong to the MicroAmplifier™ series and are designed for space-limited applications such as battery-powered instruments and PCMCIA cards.
The amplifiers feature low offset voltage (maximum 750µV), low quiescent current, and a wide supply range suitable for both single-supply (+2.7V to +36V) and dual-supply configurations. They are available in various surface-mount packages including SOT-23-5, SO-8, MSOP-8, and SSOP-16.
Burr-Brown OPA2237 specifications
| Input Offset Voltage (Max) | 750 µV |
|---|---|
| Supply Range (Single) | +2.7V to +36V |
| Bandwidth | 1.5MHz |
| Quiescent Current (Max) | 350 µA |
| Operating Temperature Range | -40°C to +85°C |
Source: Burr-Brown OPA237/OPA2237/OPA4237 Operational Amplifier Datasheet
All Burr-Brown OPA2237 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating temperature range for these operational amplifiers?
The devices are specified to operate from -40°C to +85°C.
From: Burr-Brown OPA237/OPA2237/OPA4237 Operational Amplifier Datasheet
How much quiescent current does each amplifier draw at most?
Each amplifier draws a maximum of 350 µA of quiescent current.
From: Burr-Brown OPA237/OPA2237/OPA4237 Operational Amplifier Datasheet
What is the maximum input offset voltage for these operational amplifiers?
The maximum input offset voltage is 750 microvolts.
From: Burr-Brown OPA237/OPA2237/OPA4237 Single-Supply Operational Amplifiers Datasheet
What is the maximum quiescent current per amplifier?
The maximum quiescent current per amplifier is 350 microamperes.
From: Burr-Brown OPA237/OPA2237/OPA4237 Single-Supply Operational Amplifiers Datasheet
What is the maximum input offset voltage for these amplifiers?
The maximum input offset voltage is 750 microvolts.
From: Burr-Brown OPA237/OPA2237/OPA4237 Single-Supply Operational Amplifiers Datasheet
What is the operating temperature range for specified conditions?
The devices are specified for operation from -40°C to +85°C.
From: Burr-Brown OPA237/OPA2237/OPA4237 Single-Supply Operational Amplifiers Datasheet
