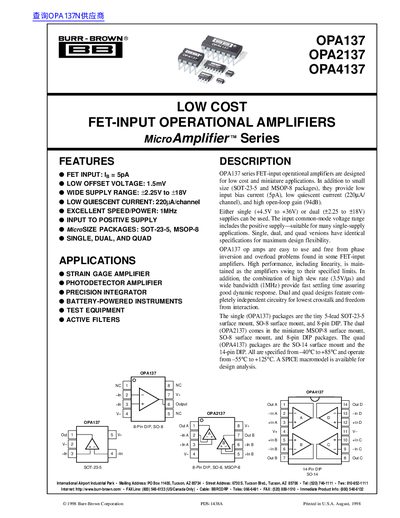

This datasheet introduces the features and characteristics of OPA137, OPA2137, OPA4137. They are designed for low cost and miniature applications. In addition to small size (SOT-23-5 and MSOP-8 packages), they provide low input bias current (5pA), low quiescent currrent (220µA/ channel), and high open-loop gain (94dB). Either single (+4.5V to +36V) or dual (±2.25 to ±18V) supplies can be used. The input common-mode voltage range includes the positive supply—suitable for many single-supply applications. Single, dual, and quad versions have
The document describes the OPA137 series of low-cost, FET-input operational amplifiers available in single, dual, and quad configurations. These devices are designed for miniature applications and feature low input bias current, low offset voltage, and a wide supply voltage range. The series includes the OPA137 (single), OPA2137 (dual), and OPA4137 (quad) models.
| Input Offset Voltage | 1.5mV |
|---|---|
| Gain-Bandwidth Product | 1 MHz |
| Slew Rate | 3.5 V/us |
| Quiescent Current | 220 uA/channel |
| Operating Temperature Range | -40°C to +85°C |
The single OPA137 is available in SOT-23-5, SO-8, and DIP packages. The dual OPA2137 comes in MSOP-8, SO-8, and DIP. The quad OPA4137 is available in SO-14 and DIP.
The input common-mode voltage range includes the positive supply, making them suitable for many single-supply applications.
