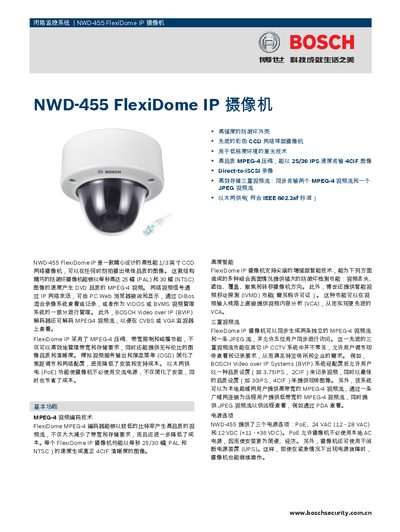

The NWD-455 FlexiDome IP is a well-engineered high-performance 1/3-inch CCD network camera that captures exceptional image quality at all times. This compact vandal-resistant camera is capable of generating DVD-quality MPEG-4 video at rates up to 25 frames per second (PAL) and 30 frames per second (NTSC).
The NWD-455 FlexiDome IP is a high‑performance 1/3‑inch CCD network camera that delivers 4CIF video at 25/30 fps in both PAL and NTSC formats. It supports MPEG‑4 and JPEG streams, three‑stream video, and advanced video analytics such as VMD and VCA.
The camera can be powered by PoE (IEEE 802.3af), 24 VAC (12‑28 VAC) or 12‑36 VDC, and includes mounting accessories for wall, ceiling and corner installations. Technical specifications, compliance certifications, and network interfaces are detailed in the later sections. This manual is written in Chinese.
| Image Sensor | 1/3‑inch color CCD |
|---|---|
| Resolution | 4CIF (704 × 576) at 25/30 fps |
| Video Formats | MPEG‑4 and JPEG streams (three‑stream capability) |
| Power Options | PoE (IEEE 802.3af), 24 VAC (12‑28 VAC), 12‑36 VDC |
| Power Consumption | 10.5 VA max |
| Operating Temperature | -25 °C to +70 °C |
| IP Rating | IP54, NEMA 3R |
It can be powered by PoE (IEEE 802.3af), 24 VAC (12‑28 VAC) or 12‑36 VDC.
The camera can generate simultaneous MPEG‑4 high‑quality, MPEG‑4 low‑bitrate, and JPEG streams.
The camera is rated IP54 and complies with NEMA 3R standards.
It uses a 1/3‑inch color CCD sensor.
