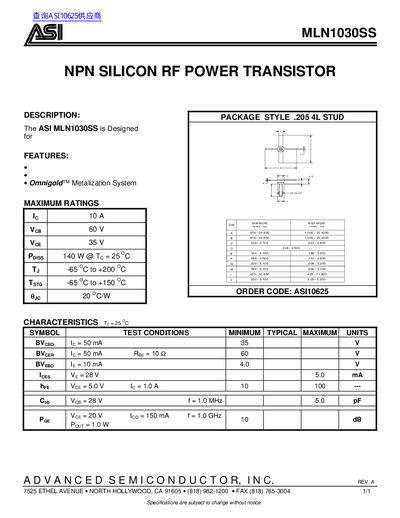

ASI MLN1030SS NPN Silicon RF Power Transistor Datasheet
The ASI MLN1030SS is an NPN silicon RF power transistor designed for high-frequency applications. It features the Omnigold™ Metalization System and is packaged in a .205 4L stud configuration.
The document details maximum ratings including a collector current of 10A and a power dissipation of 140W at 25°C. It also lists electrical characteristics such as breakdown voltages and transition frequency.
ASI MLN1030S specifications
| Collector-Emitter Voltage | 60 V |
|---|---|
| Emitter-Base Voltage | 35 V |
| Power Dissipation | 140 W @ Te = 25°C |
| Operating Temperature | -65 °C to +200 °C |
| Storage Temperature | -65 °C to +150 °C |
| Thermal Resistance | 20 °C/W |
| Package Style | .205 4L STUD |
Source: ASI MLN1030SS NPN Silicon RF Power Transistor Datasheet
All ASI MLN1030S documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous power dissipation for this transistor at room temperature?
The maximum power dissipation is 140 W when the case temperature is 25°C.
From: ASI MLN1030SS NPN Silicon RF Power Transistor Datasheet
What is the operating temperature range for storage?
The transistor can be stored between -65°C and +150°C.
From: ASI MLN1030SS NPN Silicon RF Power Transistor Datasheet
What is the ASI MLN1030S designed for?
The ASI MLN1030S is an NPN silicon RF power transistor.
From: ASI MLN1030S NPN Silicon RF Power Transistor Datasheet
What is the maximum continuous collector current rating?
The maximum continuous collector current (Ic) is 0.250 A.
From: ASI MLN1030S NPN Silicon RF Power Transistor Datasheet
