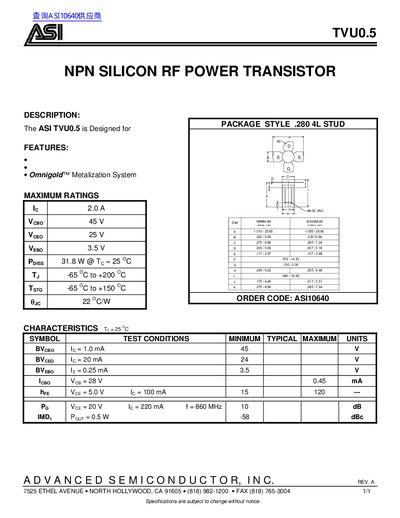

ASI TVU0.5 NPN Silicon RF Power Transistor Datasheet
The ASI TVU0.5 is an NPN silicon RF power transistor designed for use in .280 4L stud package style applications. It features the Omnigold™ Metalization System and is identified by the order code ASI10640.
The document provides maximum ratings including a collector current of 2.0 A and a collector-emitter voltage of 45 V. It also lists electrical characteristics such as breakdown voltages and power gain at 860 MHz.
ASI TVU0 specifications
| Package Style | .280 4L STUD |
|---|---|
| Metalization System | Omnigold™ |
| Order Code | ASI10640 |
| Operating Temperature Range | -65°C to +200°C |
| Storage Temperature Range | -65°C to +150°C |
Source: ASI TVU0.5 NPN Silicon RF Power Transistor Datasheet
All ASI TVU0 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the ASI TVU0.5 transistor designed for?
The ASI TVU0.5 is designed for use as an NPN silicon RF power transistor.
What is the maximum power dissipation at 25 degrees Celsius?
The maximum power dissipation is 31.8 W at a case temperature of 25 degrees Celsius.
What is the ASI TVU0.5 transistor designed for?
The ASI TVU0.5 is designed for use as an NPN silicon RF power transistor.
What is the maximum continuous power rating of the transistor?
The maximum continuous power rating is 31.8 W at a case temperature of 25°C.
What is the ASI TVU0.5B designed for?
The ASI TVU0.5B is an NPN silicon RF power transistor.
