Start here

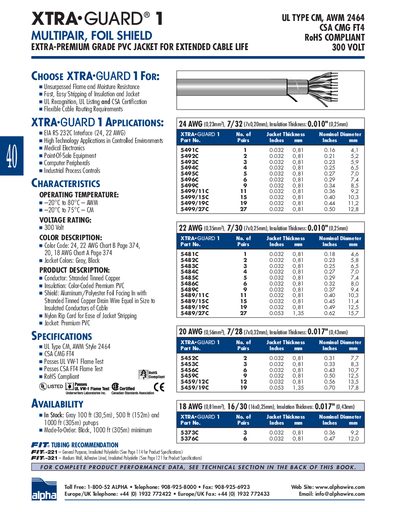

Alpha XTRA-GUARD 1 Foil Shield Product Leaflet
XTRA‑GUARD 1 is a multi‑pair, foil‑shielded cable with an extra‑premium PVC jacket designed for extended cable life. It features a stranded tinned copper conductor, color‑coded premium PVC insulation, and an aluminum/polyester foil shield with a matching drain wire. The jacket is available in gray or black and meets UL TYPE CM, AWM 2464 and CSA CMG FT4 standards.
The cable operates from –20°C to 80°C, is rated for 300 V, and is RoHS compliant. It is suitable for high‑technology applications in controlled environments such as medical electronics, point‑of‑sale equipment, computer peripherals, and industrial process controls. Availability includes stock lengths in gray and made‑to‑order black options.
Alpha XTRA-GUARD 1 specifications
| Voltage Rating | 300 Volt |
|---|---|
| Conductor | Stranded Tinned Copper |
| Insulation | ColorCoded Premium PVC |
| Shield | Aluminum/Polyester foil with tinned copper drain wire |
| Jacket Colors | Gray, Black |
| UL Listing | UL TYPE CM, AWM 2464 |
| CSA Certification | CSA CMG FT4 |
| RoHS Compliance | Yes |
All Alpha XTRA-GUARD 1 documents by type
- Alpha XTRA-GUARD 1 Foil Shield Product Leaflet 1 p
- ALPHA WIRE UL TYPE CM AWM 2464 CSA CMG FT4 300 VOL XTRA GUARD 1 MULTIPAIR FOIL SHIELD EXTRA-PREMIUM GRADE PVC JACKET FOR EXTENDED CABLE LIFE 1 p
- Alpha Wire XTRA‑GUARD 1 UL Type CM AWM 2464 CSA CMG FT4 RoHS 300V Cable Product Leaflet 1 p
- ALPHA WIRE XTRA GUARD 1 MULTICONDUCTOR SUPRASHIELD EXTRA-PREMIUM GRADE PVC JACKET FOR EXTENDED CABLE LIFE UL TYPE CM AWM 2464 CSA CMG FT4 RoHS COMPLIANT 300 VOLT 1 p
- ALPHA WIRE XTRA GUARD 1 MULTICONDUCTOR FOIL SHIELD EXTRA-PREMIUM GRADE PVC JACKET FOR EXTENDED CABLE LIFE UL TYPE CM AWM 2464 CSA CMG FT4 RoHS COMPLIANT 300 VOLT 1 p
- ALPHA WIRE UL TYPE CM AWM 2464 CSA CMG FT4 RoHS COMPLIANT 300 VOL XTRA GUARD 1 MULTIPAIR SUPRASHIELD EXTRA-PREMIUM GRADE PVC JACKET FOR EXTENDED CABLE LIFE 1 p
Questions answered in these manuals
What is the voltage rating of XTRA‑GUARD 1?
XTRA‑GUARD 1 is rated for 300 Volt.
Is XTRA‑GUARD 1 UL listed?
Yes, it is UL listed as TYPE CM, AWM 2464.
What is the voltage rating of the XTRA GUARD 1 cable?
The cable is rated for 300 Volts.
What temperature range can the XTRA GUARD 1 cable operate in?
It operates from –20°C to 80°C for the AWM version and –20°C to 75°C for the CM version.
What is the voltage rating of the cable?
The cable is rated for 300 V.
From: Alpha Wire XTRA‑GUARD 1 UL Type CM AWM 2464 CSA CMG FT4 RoHS 300V Cable Product Leaflet
What jacket colors are available?
The cable is offered in gray and black jackets.
From: Alpha Wire XTRA‑GUARD 1 UL Type CM AWM 2464 CSA CMG FT4 RoHS 300V Cable Product Leaflet
