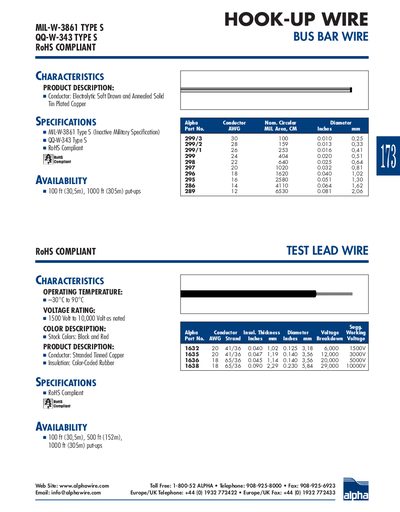

Alpha MIL-W-3861 Type S Hook-up Wire & QQ-W-343 Bus Bar Wire Datasheet
Alpha offers MIL‑W‑3861 Type S hook‑up wire and QQ‑W‑343 bus‑bar wire with electrolytic soft‑drawn, annealed solid tin‑plated copper conductors. Both products are RoHS compliant and available in black and red color‑coded rubber insulation.
Key specifications include an operating temperature range of –30 °C to 90 °C, voltage ratings from 1 500 V up to 10 000 V, and standard lengths of 100 ft (30.5 m), 500 ft (152 m) and 1 000 ft (305 m). Detailed conductor diameters, AWG sizes and breakdown voltages are listed for each wire type.
Alpha QQ-W-343 specifications
| Conductor material | Electrolytic Soft Drawn and Annealed Solid Tin Plated Copper |
|---|---|
| Voltage rating | 1 500 V to 10 000 V |
| RoHS compliance | Yes |
Source: Alpha MIL-W-3861 Type S Hook-up Wire & QQ-W-343 Bus Bar Wire Datasheet
All Alpha QQ-W-343 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What voltage rating does the Alpha bus‑bar wire support?
It is rated for 1 500 V to 10 000 V.
From: Alpha MIL-W-3861 Type S Hook-up Wire & QQ-W-343 Bus Bar Wire Datasheet
Is Alpha wire RoHS compliant?
Yes, both the hook‑up and bus‑bar wires are RoHS compliant.
From: Alpha MIL-W-3861 Type S Hook-up Wire & QQ-W-343 Bus Bar Wire Datasheet
