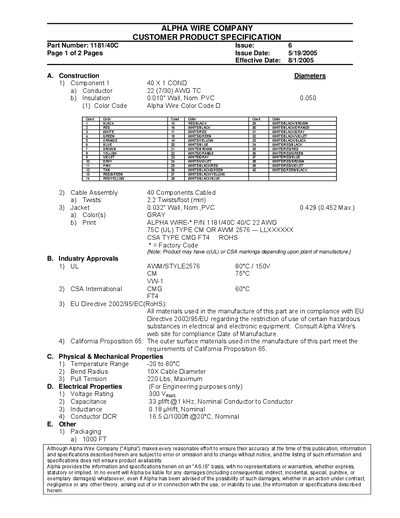

Alpha Wire 1181/40C Customer Product Specification
The Alpha Wire 1181/40C Customer Product Specification provides detailed information on the construction, electrical and mechanical properties, industry approvals, and packaging options for this wire assembly. It is intended for engineers and purchasing personnel who need precise data for design and compliance purposes.
The document lists the conductor size, insulation and jacket dimensions, temperature range, voltage rating, pull tension, twist rate, and other key parameters, along with UL, CSA, and EU RoHS approvals. Packaging lengths of 100 ft, 500 ft, and 1000 ft are also specified.
Alpha 40C specifications
| Conductor AWG | 22 AWG |
|---|---|
| Insulation wall thickness | 0.010" |
| Jacket wall thickness | 0.032" |
| Temperature range | -20 to 80°C |
| Voltage rating | 300 Vrms |
| Maximum pull tension | 220 lbs |
| Twist rate | 2.2 twists/ft (min) |
| Inductance (nominal) | 0.18 µH/ft |
