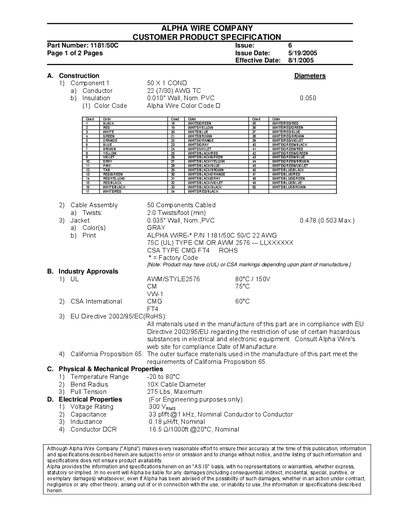

Alpha Wire 1181/50C Product Specification
The Alpha Wire 1181/50C product specification outlines the construction of the 22 AWG copper conductor with a 0.010" PVC insulation wall. It lists the color code options, jacket material, and twist rate for the cable assembly.
The document also provides industry approvals (UL, CSA, EU RoHS), physical and mechanical properties such as temperature range and bend radius, and electrical characteristics including voltage rating, pull tension, capacitance, and inductance. Packaging options and legal disclaimer statements are included at the end.
Alpha 50C specifications
| Conductor size | 22 (7/30) AWG TC |
|---|---|
| Insulation wall thickness | 0.010" (Nom. PVC 0.050) |
| Temperature range | -20 to 80°C |
| Bend radius | 10× cable diameter |
| Voltage rating | 300 Vrms |
| Maximum pull tension | 275 lbs |
| Capacitance | 33 pF/ft @1 kHz |
| Inductance | 0.18 µH/ft |
