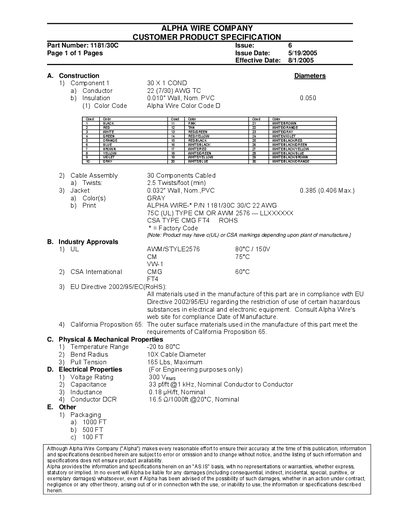

Alpha Wire 1181/30C Customer Product Specification
The Alpha Wire 1181/30C Customer Product Specification provides detailed information on the construction of the wire, including conductor size, insulation thickness, and jacket material. It also lists the color code options and packaging lengths available.
Additional sections cover physical and mechanical properties such as temperature range and bend radius, electrical characteristics like voltage rating and capacitance, and the various industry approvals (UL, CSA, EU RoHS, California Proposition 65). The document concludes with warranty disclaimer language.
Alpha 30C specifications
| Conductor size | 22 (7/30) AWG TC |
|---|---|
| Insulation thickness | 0.010" Wall, Nom. PVC 0.050 |
| Jacket thickness | 0.032" Wall, Nom., PVC 0.385 (0.406 Max.) |
| Temperature range | -20 to 80°C |
| Bend radius | 10× cable diameter |
| Maximum pull tension | 165 lbs |
| Voltage rating | 300 Vrms |
| Capacitance | 33 pF/ft @1 kHz |
| Inductance | 0.18 µH/ft |
