ABB intelligent electrical valve positioners TZID, TZIDC, TZIDC110, TZIDC120, TZIDC200 series are a kind of positioning device with communication capability and electronic configuration parameters. It is installed on pneumatic linear or angular actuators. Its characteristics are small and compact design, modular structure and excellent cost performance. The control parameters matched with the terminal control element are automatically determined by the intelligent positioner, saving a lot of debugging time and achieving the optimal control.
The ABB TZID series includes the TZID, TZIDC, TZIDC110, TZIDC120 and TZIDC200 smart valve positioners for process automation. The devices feature compact modular design, HART communication, and optional PROFIBUS PA or FOUNDATION Fieldbus interfaces. They are suitable for both linear and angular pneumatic actuators and offer configurable parameters for optimal control.

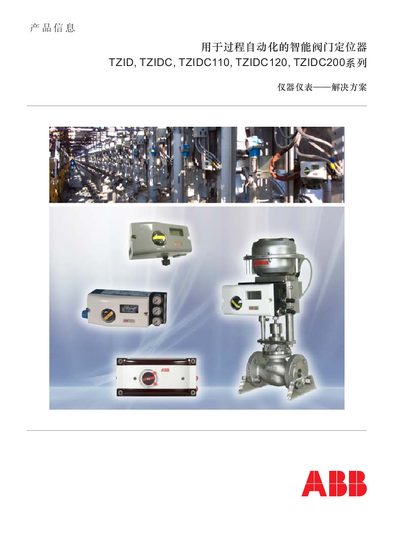

The manual covers brief description, installation methods for straight‑stroke and angular actuators, operating principle, technical specifications, electrical connections, dimensions, selection code tables, and safety certifications. Communication options, gas‑source requirements, and environmental limits are also detailed to aid engineers and technicians during setup and maintenance. This manual is written in Chinese.
| Input signal range | 4 mA – 20 mA (0 % – 100 %) |
|---|---|
| Output pressure range | 0 – 6 bar (0 – 90 psi) |
| Operating temperature | -40 °C – 85 °C |
| Enclosure protection rating | IP65 / NEMA 4X |
| Power supply voltage | 5 V – 11 V DC |
| Resolution | > 16 000 steps |
| Sampling speed | 20 ms |
The input signal range is 4 mA to 20 mA, representing 0 % to 100 % of the measured variable.
The devices can operate from –40 °C to +85 °C.
The enclosure has an IP65 rating and meets NEMA 4X standards.
